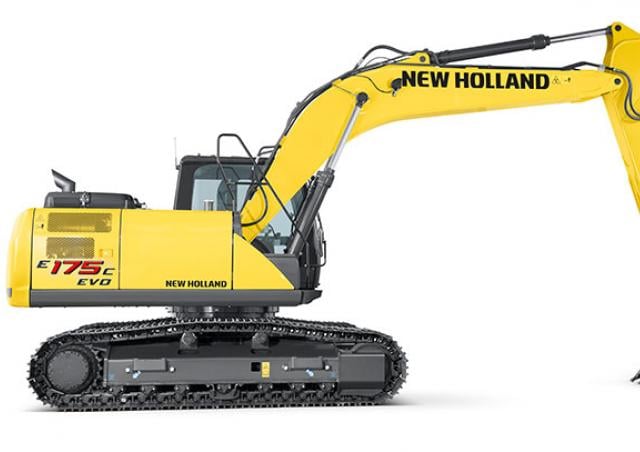

E175C EVO New Holland excavator specs & Dimensions (2022 - 2026)

New Holland E175C EVO is a Crawler Excavator manufactured since 2022, with a weight of 17.2 tons. It features a track width of 600…

New Holland E175C EVO is a Crawler Excavator manufactured since 2022, with a weight of 17.2 tons. It features a track width of 600 mm, a transport length of 8.44 meters, a transport width of 2.59 meters, and a transport height of 2.95 meters. The excavator has a tear-out force of 161 kN, a dredging depth of 6.06 meters, and a maximum horizontal reach of 9.04 meters. It comes with a bucket capacity of 0.98 m³ and includes special equipment such as air conditioning, cabin adjustment, and track adjustment.

Crawler Excavators New Holland E175C EVO

Technical specs - E175C EVO New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.2 t
Transport length
8.44 m
Transport width
2.59 m
Transport height
2.95 m
Bucket capacity
0.98 m³
Bucket capacity max.
0.98 m³
Undercarriage
SL
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.04 m
Dredging depth
6.06 m
Tear-out force
161 kN
Engine manuf.
Isuzu
Engine type
AI-4JJ1X
Engine power
92 kW
Displacement
3 l
Revolutions at max torque
1800 rpm
Max. torque
420 Nm
No. of cylinders
4
Cylinder bore x stroke
95.4 x 104.9 mm
Emission level
Tier 3

More technical details, like: bucket capacity min., bucket width, model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

New Holland E175C EVO FAQ

When was the New Holland E175C EVO manufactured?

The New Holland E175C EVO was first produced in 2022.

How much does the New Holland E175C EVO weigh?

The New Holland E175C EVO weighs 17.2 tons.

What are the transport dimensions of the New Holland E175C EVO?

The New Holland E175C EVO has a transport length of 8.44 meters, a transport width of 2.59 meters, and a transport height of 2.95 meters.

What are the undercarriage specifications of the New Holland E175C EVO?

The New Holland E175C EVO has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the New Holland E175C EVO?

The New Holland E175C EVO has a dredging depth of 6.06 meters, a maximum horizontal reach of 9.04 meters, and features a monobloc boom.

What is the power rating of the New Holland E175C EVO?

The power rating of the New Holland E175C EVO is not provided in the available data.

What is the bucket capacity of the New Holland E175C EVO excavator?

The New Holland E175C EVO excavator has a bucket capacity of 0.98 cubic meters.

How much is a New Holland E175C EVO Crawler excavator (2022u20132025) worth?

The residual value of the New Holland E175C EVO depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
