E160C BladeRunner New Holland excavator specs & Dimensions (2012 - 2015)

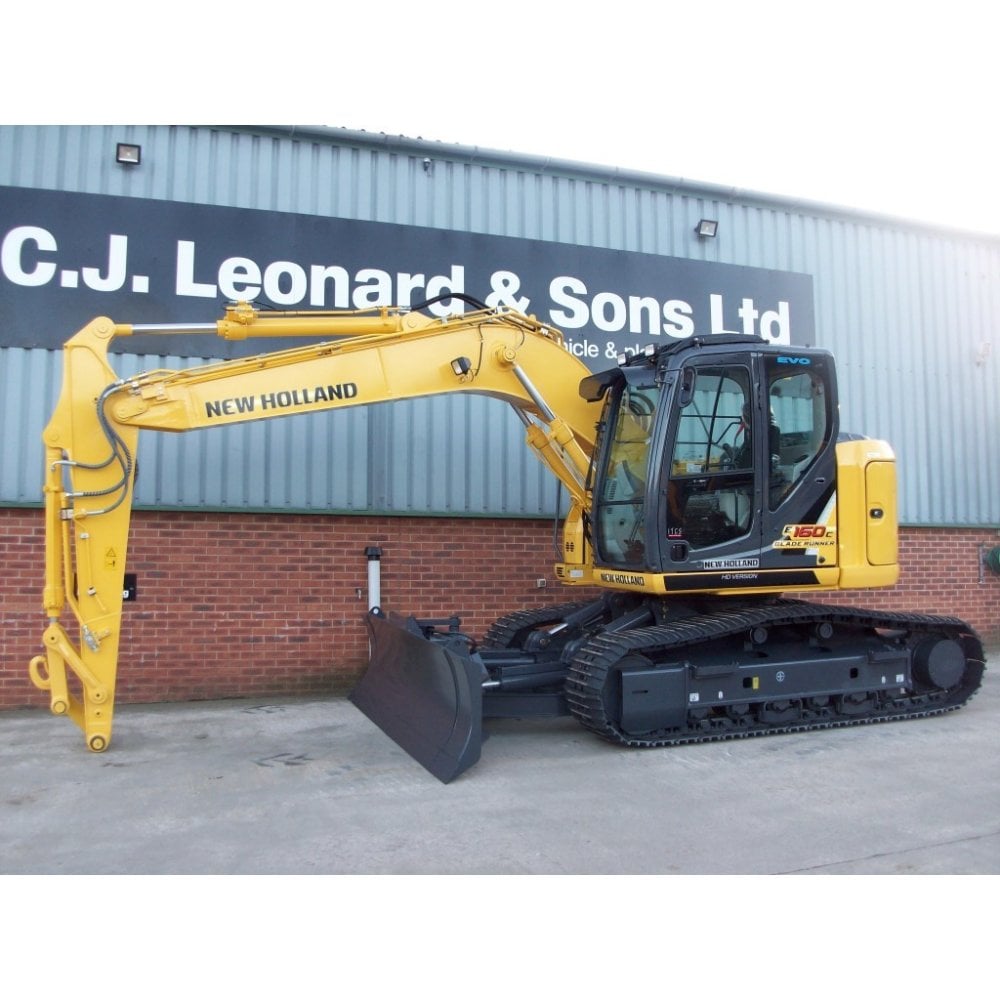

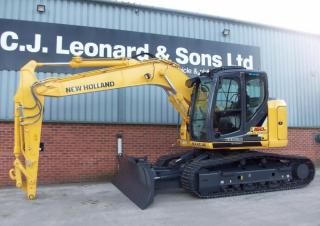

New Holland E160C BladeRunner is a Crawler Excavator manufactured from 2012 to 2015. It has a weight of 16.5 tons and a track widt…

New Holland E160C BladeRunner is a Crawler Excavator manufactured from 2012 to 2015. It has a weight of 16.5 tons and a track width of 600 mm. The transport dimensions are 7.47 meters in length, 2.59 meters in width, and 2.99 meters in height. The excavator features a tear-out force of 90 kN, a dredging depth of 5.5 meters, and a maximum horizontal reach of 8.83 meters. The bucket width is 1.1 meters with a capacity of 0.8 cubic meters. Special equipment includes air conditioning, a blade, and an overload alert system.

Crawler Excavators New Holland E160C BladeRunner

Technical specs - E160C BladeRunner New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.5 t
Transport length
7.47 m
Transport width
2.59 m
Transport height
2.99 m
Bucket capacity
0.8 m³
Track width
600 mm
Boom
VA
Max. Reach horizontal
8.83 m
Dredging depth
5.5 m
Tear-out force
90 kN
Bucket width
1.1 m
Model series
E
Engine manuf.
Mitsubishi
Engine type
D 04 EG-TAA
Engine power
74 kW
Displacement
3.3 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

New Holland E160C BladeRunner FAQ

When was the New Holland E160C BladeRunner manufactured?

The New Holland E160C BladeRunner was manufactured from 2012 to 2015.

How much does the New Holland E160C BladeRunner weigh?

The New Holland E160C BladeRunner weighs 16.5 tons.

What are the transport dimensions of the New Holland E160C BladeRunner?

The New Holland E160C BladeRunner has a transport length of 7.47 meters, a transport width of 2.59 meters, and a transport height of 2.99 meters.

What is the track width of the New Holland E160C BladeRunner's undercarriage?

The New Holland E160C BladeRunner has a track width of 600 mm.

What are the excavation performance specifications of the New Holland E160C BladeRunner?

The New Holland E160C BladeRunner has an adjustable boom, a dredging depth of 5.5 meters, and a maximum horizontal reach of 8.83 meters.

What is the tear-out force of the New Holland E160C BladeRunner?

The New Holland E160C BladeRunner has a tear-out force of 90 kN.

What are the specifications of the primary work tool bucket on the New Holland E160C BladeRunner?

The primary work tool bucket of the New Holland E160C BladeRunner has a capacity of 0.8 cubic meters and a width of 1.1 meters.
