E135 SRL New Holland excavator specs & Dimensions (2006 - 2026)

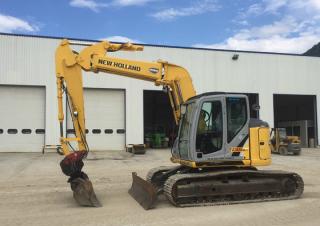

New Holland E135 SRL is a crawler excavator manufactured since 2006. It has a weight of 16 tons and a track width of 800 mm. The t…

New Holland E135 SRL is a crawler excavator manufactured since 2006. It has a weight of 16 tons and a track width of 800 mm. The transport dimensions are 7 meters in length, 2 meters in width, and 2 meters in height. The excavator features a tear-out force of 90 kN, a dredging depth of 6 meters, and a maximum horizontal reach of 8 meters. It is equipped with a bucket width of 1 meter and includes special equipment such as a blade.

Crawler Excavators New Holland E135 SRL

Technical specs - E135 SRL New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.2 t
Transport length
7.47 m
Transport width
2.84 m
Transport height
2.94 m
Bucket capacity min.
0.42 m³
Bucket capacity max.
0.7 m³
Undercarriage
HD
Track width
800 mm
Boom
MB
Max. Reach horizontal
8.77 m
Dredging depth
6.01 m
Tear-out force
90 kN
Bucket width
1 m
Engine manuf.
Isuzu
Engine type
4BG1TA
Engine power
63 kW
Displacement
4329 l
No. of cylinders
4
Cylinder bore x stroke
105 x 125 mm
Emission level
Tier 2

More technical details, like: bucket capacity, model series, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

New Holland E135 SRL FAQ

When was the New Holland E135 SRL manufactured?

The New Holland E135 SRL was first produced in 2006.

How much does the New Holland E135 SRL weigh?

The New Holland E135 SRL weighs 16.2 tons.

What are the transport dimensions of the New Holland E135 SRL crawler excavator?

The New Holland E135 SRL has a transport length of 7.47 meters, a transport width of 2.84 meters, and a transport height of 2.94 meters.

What are the undercarriage specifications of the New Holland E135 SRL?

The New Holland E135 SRL has a heavy duty undercarriage with a track width of 800 mm.

What are the excavation performance specifications of the New Holland E135 SRL?

The New Holland E135 SRL has a dredging depth of 6.01 meters, a maximum horizontal reach of 8.77 meters, and features a monobloc boom.

Does the New Holland E135 SRL have any power ratings listed, and if not, what is its tear-out force?

The source data does not provide power ratings for the New Holland E135 SRL. However, it has a tear-out force of 90 kN.

What is the bucket width of the New Holland E135 SRL excavator?

The bucket width of the New Holland E135 SRL is 1 meter.

How much is a New Holland E135 SRL Crawler excavator (2006u20132025) worth?

The residual value of the New Holland E135 SRL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
