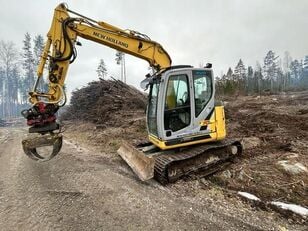

E 70 SR M New Holland excavator specs & Dimensions (2003 - 2007)

New Holland E 70 SR M is a crawler excavator manufactured from 2003 to 2007, with a weight of 7 tons, a transport length of 2.6 me…

New Holland E 70 SR M is a crawler excavator manufactured from 2003 to 2007, with a weight of 7 tons, a transport length of 2.6 meters, and a transport width of 5.78 meters. It is equipped with air conditioning, a blade, a diesel particulate filter, and a hydraulic quick hitch.

Crawler Excavators New Holland E 70 SR M

Technical specs - E 70 SR M New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7 t
Transport length
2.6 m
Transport width
5.78 m
Bucket capacity
0.35 m³
Track width
450 mm
Boom
MB
Model series
E
Engine manuf.
Isuzu
Engine type
CC-4JG1
Engine power
40.5 kW
Displacement
3.059 l
Revolutions at max torque
1800 rpm

More technical details, like: transport height, bucket capacity min., bucket capacity max., undercarriage, max. reach horizontal, dredging depth, tear-out force, bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

New Holland E 70 SR M FAQ

When was the New Holland E 70 SR M manufactured?

The New Holland E 70 SR M was manufactured from 2003 to 2007.

How much does the New Holland E 70 SR M weigh?

The New Holland E 70 SR M weighs 7 tons.

What are the transport dimensions of the New Holland E 70 SR M?

The New Holland E 70 SR M has a transport length of 2.6 meters and a transport width of 5.78 meters.

What is the track width of the New Holland E 70 SR M's undercarriage?

The New Holland E 70 SR M has a track width of 450 mm.

What type of boom does the New Holland E 70 SR M use for excavation?

The New Holland E 70 SR M uses a monobloc boom for excavation.

What is the bucket capacity of the New Holland E 70 SR M crawler excavator?

The bucket capacity of the New Holland E 70 SR M crawler excavator is 0.35 cubic meters.

How much is a New Holland E 70 SR M Crawler excavator (2003u20132007) worth?

The residual value of the New Holland E 70 SR M depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
