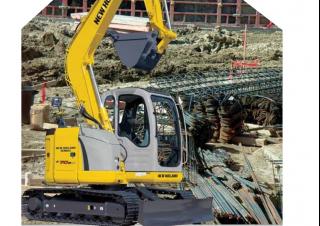

E 70 SR New Holland excavator specs & Dimensions (2003 - 2007)

New Holland E 70 SR is a crawler excavator manufactured from 2003 to 2007, with a weight of 7 tons. It has a transport length of 5…

New Holland E 70 SR is a crawler excavator manufactured from 2003 to 2007, with a weight of 7 tons. It has a transport length of 5.78 meters, a transport width of 2.32 meters, and a transport height of 2.6 meters. The excavator is equipped with air conditioning, a blade, and a hydraulic quick hitch.

Crawler Excavators New Holland E 70 SR

Technical specs - E 70 SR New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7 t
Transport length
5.78 m
Transport width
2.32 m
Transport height
2.6 m
Bucket capacity
0.35 m³
Track width
450 mm
Boom
SKA
Dredging depth
4.52 m
Tear-out force
36 kN
Model series
E
Engine manuf.
Isuzu
Engine type
CC-4JG1
Engine power
40.5 kW
Displacement
3.059 l
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, max. reach horizontal, bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

New Holland E 70 SR FAQ

When was the New Holland E 70 SR manufactured?

The New Holland E 70 SR was manufactured from 2003 to 2007.

How much does the New Holland E 70 SR weigh?

The New Holland E 70 SR weighs 7 tons.

What are the transport dimensions of the New Holland E 70 SR crawler excavator?

The New Holland E 70 SR has a transport length of 5.78 meters, a transport width of 2.32 meters, and a transport height of 2.6 meters.

What is the track width of the New Holland E 70 SR's undercarriage?

The New Holland E 70 SR has a track width of 450 mm.

What are the excavation performance specifications of the New Holland E 70 SR?

The New Holland E 70 SR has a dredging depth of 4.52 meters and features a lateral articulated boom.

What is the tear-out force of the New Holland E 70 SR?

The New Holland E 70 SR has a tear-out force of 36 kN.

What is the bucket capacity of the New Holland E 70 SR excavator?

The New Holland E 70 SR excavator has a bucket capacity of 0.35 cubic meters.

How much is a New Holland E 70 SR Crawler excavator (2003u20132007) worth?

The residual value of the New Holland E 70 SR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
