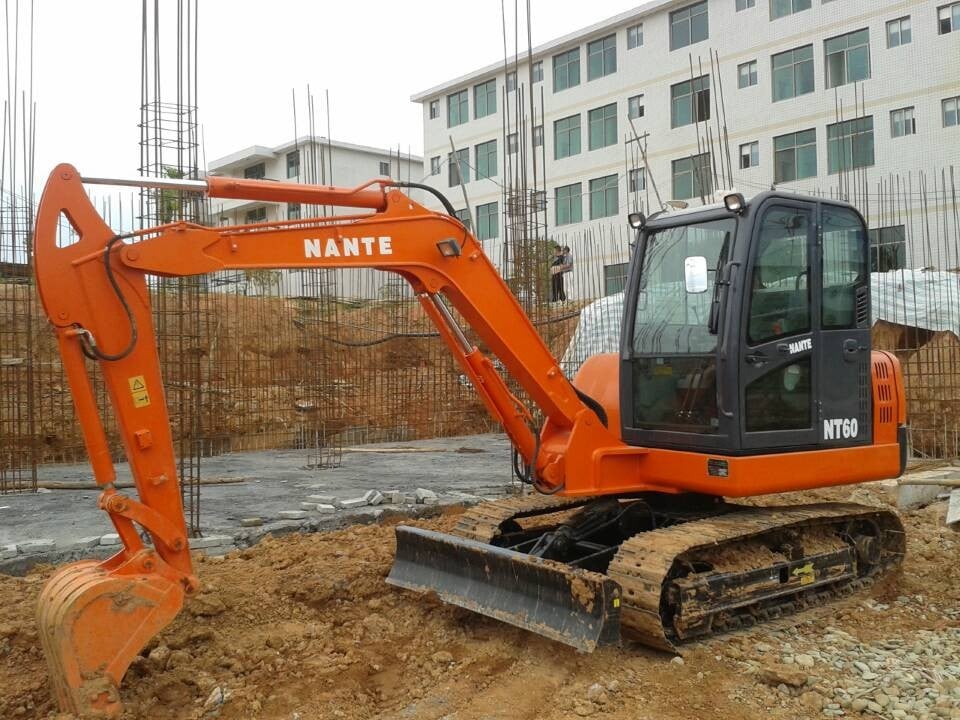

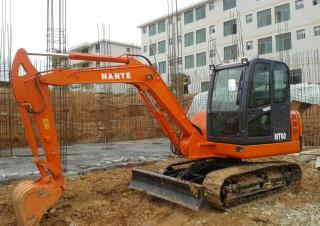

NT60 Nante excavator specs & Dimensions (2017 - 2020)

Nante NT60 is a Crawler Excavator manufactured from 2017 to 2020. It has a weight of 6 tons and a track width of 450 mm. The trans…

Nante NT60 is a Crawler Excavator manufactured from 2017 to 2020. It has a weight of 6 tons and a track width of 450 mm. The transport dimensions are 6.16 meters in length, 2 meters in width, and 2.645 meters in height. The excavator features a tear-out force of 73 kN, a dredging depth of 3.78 meters, and a maximum horizontal reach of 6.105 meters. It is equipped with a bucket capacity of 0.26 cubic meters and includes special equipment such as a blade.

Crawler Excavators Nante NT60

Technical specs - NT60 Nante

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6 t
Transport length
6.16 m
Transport width
2 m
Transport height
2.645 m
Bucket capacity
0.26 m³
Track width
450 mm
Max. Reach horizontal
6.105 m
Dredging depth
3.78 m
Tear-out force
73 kN
Engine manuf.
Kohler
Engine type
KDI2504
Engine power
48 kW
Max. torque
305/1500 Nm
No. of cylinders
4

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Nante NT60 FAQ

When was the Nante NT60 manufactured?

The Nante NT60 was manufactured from 2017 to 2020.

How much does the Nante NT60 crawler excavator weigh?

The Nante NT60 crawler excavator weighs 6 tons.

What are the transport dimensions of the Nante NT60 crawler excavator?

The Nante NT60 has a transport length of 6.16 meters, a transport width of 2 meters, and a transport height of 2.65 meters.

What is the track width of the Nante NT60's undercarriage?

The Nante NT60 has a track width of 450 mm.

What are the excavation performance specifications of the Nante NT60?

The Nante NT60 has a dredging depth of 3.78 meters and a maximum horizontal reach of 6.105 meters.

What power rating information is available for the Nante NT60?

There is no power rating data available for the Nante NT60. The only related specification provided is a tear-out force of 73 kN, which is a measure of force, not power.

What is the bucket capacity of the Nante NT60 crawler excavator?

The bucket capacity of the Nante NT60 crawler excavator is 0.26 cubic meters.

How much is a Nante NT60 Crawler excavator (2017u20132020) worth?

The residual value of the Nante NT60 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
