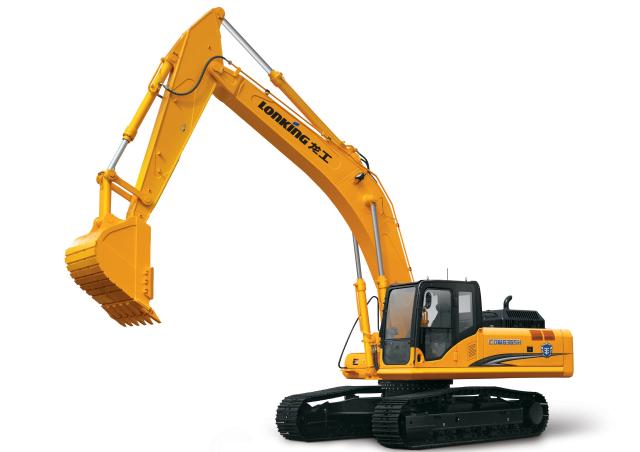

CDM6365E Lonking excavator specs & Dimensions (2017 - 2026)

Lonking CDM6365E is a crawler excavator manufactured since 2017. It has a weight of 34 tons and a track width of 600 mm. The trans…

Lonking CDM6365E is a crawler excavator manufactured since 2017. It has a weight of 34 tons and a track width of 600 mm. The transport dimensions are 11.283 meters in length, 3.19 meters in width, and 3.518 meters in height. The dredging depth is 7.069 meters, with a bucket width of 1.46 meters and a bucket capacity of 1.6 cubic meters.

Crawler Excavators Lonking CDM6365E

Technical specs - CDM6365E Lonking

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
34 t
Transport length
11.283 m
Transport width
3.19 m
Transport height
3.518 m
Bucket capacity
1.6 m³
Track width
600 mm
Dredging depth
7.069 m
Bucket width
1.46 m
Model series
CDM
Engine manuf.
Cummins
Engine type
QSC8.3
Displacement
8.3 l

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, max. reach horizontal, tear-out force, engine power, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Lonking CDM6365E FAQ

When was the Lonking CDM6365E manufactured?

The Lonking CDM6365E was first produced in 2017.

How much does the Lonking CDM6365E weigh?

The Lonking CDM6365E weighs 34 tons.

What are the transport dimensions of the Lonking CDM6365E crawler excavator?

The Lonking CDM6365E has a transport length of 11.28 meters, a transport width of 3.19 meters, and a transport height of 3.52 meters.

What is the track width of the Lonking CDM6365E's undercarriage?

The Lonking CDM6365E has a track width of 600 mm.

What is the dredging depth of the Lonking CDM6365E crawler excavator?

The Lonking CDM6365E crawler excavator has a dredging depth of 7.069 meters.

What are the specifications of the bucket on the Lonking CDM6365E crawler excavator?

The bucket of the Lonking CDM6365E has a capacity of 1.6 cubic meters and a width of 1.46 meters.
