975FHD Liugong excavator specs & Dimensions (2025 - 2026)

Weight: 80.05t – Transport length: 13.09m – Transport width: 4m – Transport height: 4.771m – Bucket capacity: 5m³ – Track width: 6…

Weight: 80.05t – Transport length: 13.09m – Transport width: 4m – Transport height: 4.771m – Bucket capacity: 5m³ – Track width: 650mm

Check out detailed specifications, information and technical data for Liugong 975FHD excavator manufactured between 2025 - 2026. Get more in-depth insight with Liugong 975FHD digger specifications. See information, like: Weight: 80.05t – Transport length: 13.09m – Transport width: 4m – Transport height: 4.771m – Bucket capacity: 5m³ – Track width: 650mm and more.

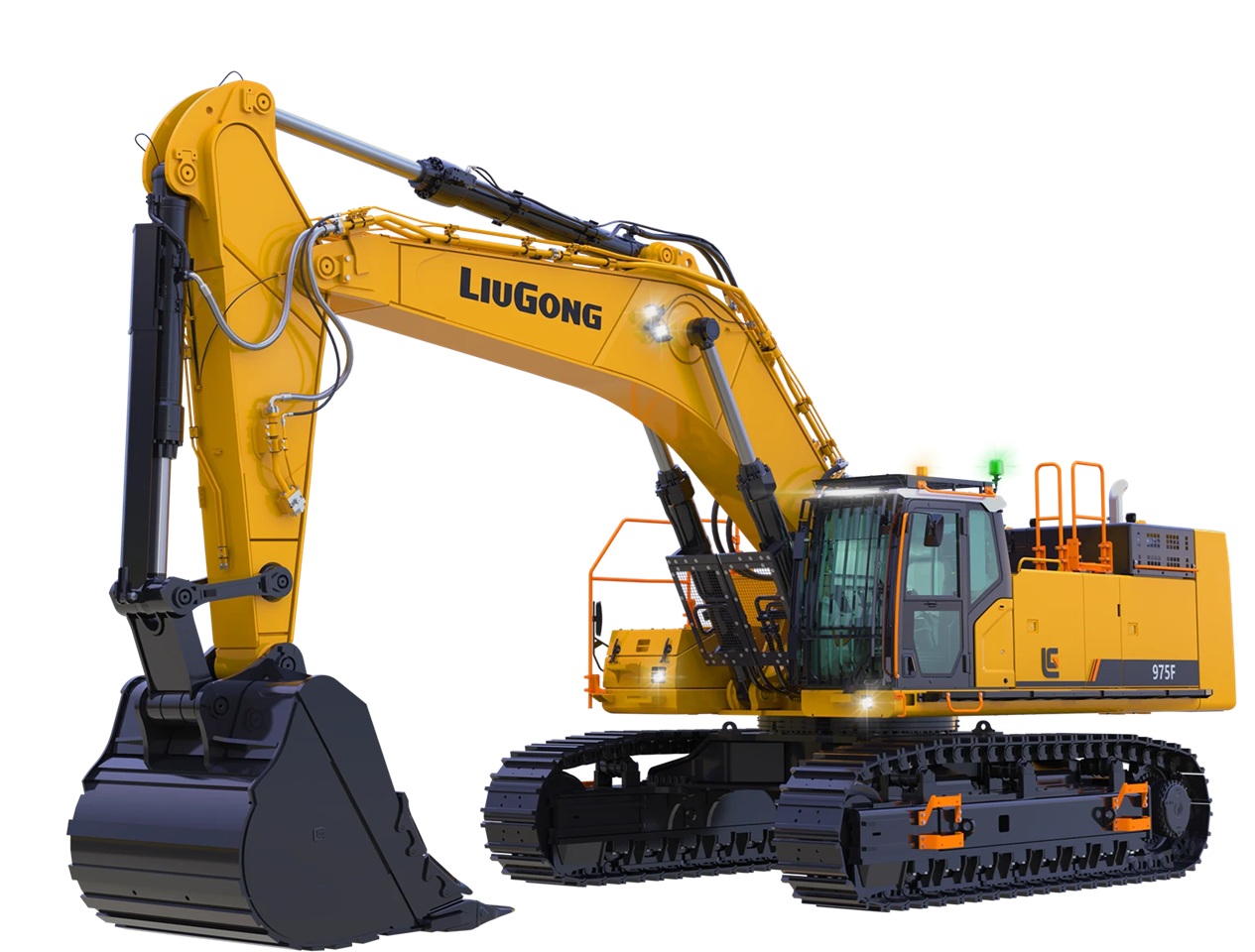

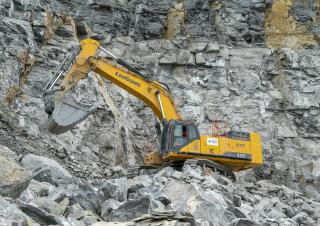

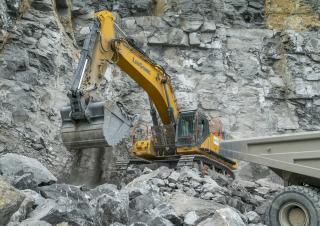

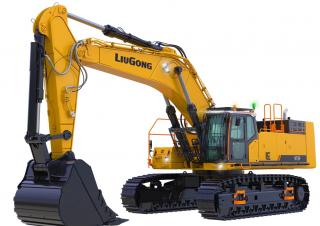

Crawler Excavators Liugong 975FHD
Crawler Excavators Liugong 975FHD
Crawler Excavators Liugong 975FHD
Crawler Excavators Liugong 975FHD
Crawler Excavators Liugong 975FHD
Crawler Excavators Liugong 975FHD
Crawler Excavators Liugong 975FHD
Crawler Excavators Liugong 975FHD

Visit Liugong live at

Technical specs - 975FHD Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
80.05 t
Transport length
13.09 m
Transport width
4 m
Transport height
4.771 m
Bucket capacity
5 m³
Track width
650 mm
Boom
MB
Max. Reach horizontal
11.9 m
Dredging depth
7.619 m
Tear-out force
331 kN
Model series
F
Engine manuf.
Cummins
Engine type
X15
Engine power
391 kW
Displacement
14.9 l
Revolutions at max torque
1400 rpm
Max. torque
2373 Nm
No. of cylinders
6
Emission level
Stage V

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)
