950E Liugong excavator specs & Dimensions (2018 - 2026)

Liugong 950E is a Crawler Excavator manufactured since 2018, with a weight of 48 tons. It features a track width of 900 mm, a tran…

Liugong 950E is a Crawler Excavator manufactured since 2018, with a weight of 48 tons. It features a track width of 900 mm, a transport length of 11.515 meters, a transport width of 3.64 meters, and a transport height of 3.81 meters. The excavator has a tear-out force of 265 kN, a dredging depth of 6.521 meters, and a maximum horizontal reach of 10.625 meters. It comes with a bucket width of 1.9 meters and a bucket capacity of 3.2 cubic meters. The machine is equipped with air conditioning.

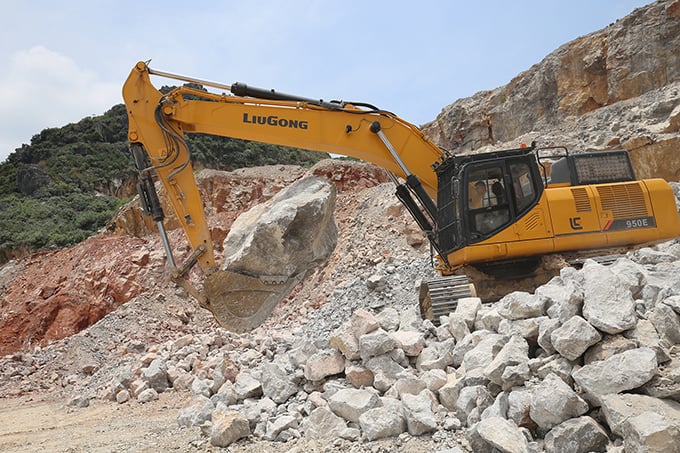

Crawler Excavators Liugong 950E
Crawler Excavators Liugong 950E
Crawler Excavators Liugong 950E
Crawler Excavators Liugong 950E

Visit Liugong live at

Technical specs - 950E Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
48 t
Transport length
11.515 m
Transport width
3.64 m
Transport height
3.81 m
Bucket capacity
3.2 m³
Track width
900 mm
Boom
MB
Max. Reach horizontal
10.625 m
Dredging depth
6.521 m
Tear-out force
265 kN
Bucket width
1.9 m
Model series
E
Engine manuf.
Cummins
Engine type
QSG12
Engine power
282 kW
Displacement
11.8 l
Revolutions at max torque
1400 rpm
Max. torque
2034 Nm
No. of cylinders
6
Cylinder bore x stroke
132x144 mm
Emission level
Tier 4f/EU IV

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liugong 950E FAQ

When was the Liugong 950E manufactured?

The Liugong 950E was first produced in 2018.

How much does the Liugong 950E weigh?

The Liugong 950E weighs 48 tons.

What are the transport dimensions of the Liugong 950E crawler excavator?

The Liugong 950E has a transport length of 11.52 meters, a width of 3.64 meters, and a height of 3.81 meters.

What is the track width of the Liugong 950E's undercarriage?

The Liugong 950E has a track width of 900 mm.

What are the excavation performance specifications of the Liugong 950E crawler excavator?

The Liugong 950E crawler excavator has a dredging depth of 6.521 meters, a maximum horizontal reach of 10.625 meters, and features a Monobloc boom.

What are the power ratings of the Liugong 950E?

The source data does not provide power rating information for the Liugong 950E.

What are the specifications of the bucket on the Liugong 950E crawler excavator?

The bucket of the Liugong 950E has a capacity of 3.2 cubic meters and a width of 1.9 meters.

How much is a Liugong 950E Crawler excavator (2018u20132025) worth?

The residual value of the Liugong 950E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
