939E Liugong excavator specs & Dimensions (2019 - 2025)

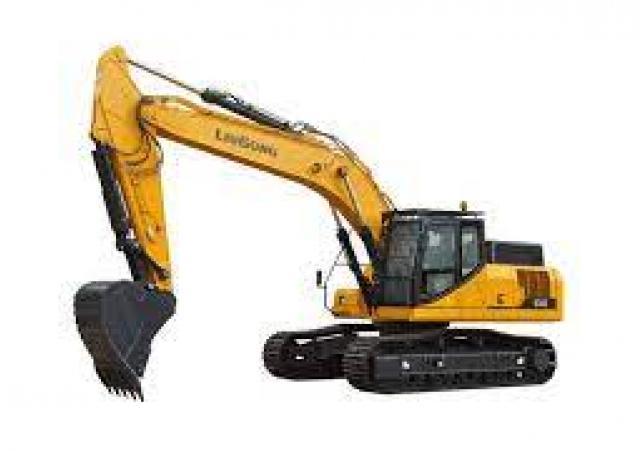

Liugong 939E is a Crawler Excavator manufactured since 2019, with a weight of 37.3 t. It features a track width of 700 mm, a trans…

Liugong 939E is a Crawler Excavator manufactured since 2019, with a weight of 37.3 t. It features a track width of 700 mm, a transport length of 11.167 m, a transport width of 3.29 m, and a transport height of 3.53 m. The excavator has a tear-out force of 232 kN, a dredging depth of 7.34 m, and a maximum horizontal reach of 11.1 m. It is equipped with a bucket capacity of 1.6 m³ and includes special equipment such as air conditioning.

Crawler Excavators Liugong 939E

Visit Liugong live at

Technical specs - 939E Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
37.3 t
Transport length
11.167 m
Transport width
3.29 m
Transport height
3.53 m
Bucket capacity
1.6 m³
Track width
700 mm
Boom
MB
Max. Reach horizontal
11.1 m
Dredging depth
7.34 m
Tear-out force
232 kN
Model series
E
Engine manuf.
Cummins
Engine type
QSL9
Engine power
209 kW
Displacement
8.9 l
Revolutions at max torque
2000 rpm
Max. torque
1451/1400 Nm
No. of cylinders
6
Cylinder bore x stroke
114x145 mm
Emission level
EU IV

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Liugong 939E FAQ

When was the Liugong 939E manufactured?

The Liugong 939E was first produced in 2019.

How much does the Liugong 939E weigh?

The Liugong 939E weighs 37.3 tons.

What are the transport dimensions of the Liugong 939E crawler excavator?

The Liugong 939E crawler excavator has a transport length of 11.17 meters, a transport width of 3.29 meters, and a transport height of 3.53 meters.

What is the track width of the Liugong 939E crawler excavator?

The Liugong 939E crawler excavator has a track width of 700 mm.

What are the excavation performance specifications of the Liugong 939E crawler excavator?

The Liugong 939E crawler excavator has a dredging depth of 7.34 meters, a maximum horizontal reach of 11.1 meters, and features a monobloc boom.

What is the tear-out force of the Liugong 939E crawler excavator?

The Liugong 939E crawler excavator has a tear-out force of 232 kN.

What is the bucket capacity of the Liugong 939E excavator?

The Liugong 939E excavator has a bucket capacity of 1.6 cubic meters.

How much is a Liugong 939E Crawler excavator (2019u20132025) worth?

The residual value of the Liugong 939E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
