933F Liugong excavator specs & Dimensions (2023 - 2026)

Weight: 34.3t – Transport length: 10.65m – Transport width: 3.19m – Transport height: 3.525m – Bucket capacity: 1.4m³ – Track widt…

Weight: 34.3t – Transport length: 10.65m – Transport width: 3.19m – Transport height: 3.525m – Bucket capacity: 1.4m³ – Track width: 600mm

Check out detailed specifications, information and technical data for Liugong 933F excavator manufactured between 2023 - 2026. Get more in-depth insight with Liugong 933F digger specifications. See information, like: Weight: 34.3t – Transport length: 10.65m – Transport width: 3.19m – Transport height: 3.525m – Bucket capacity: 1.4m³ – Track width: 600mm and more.

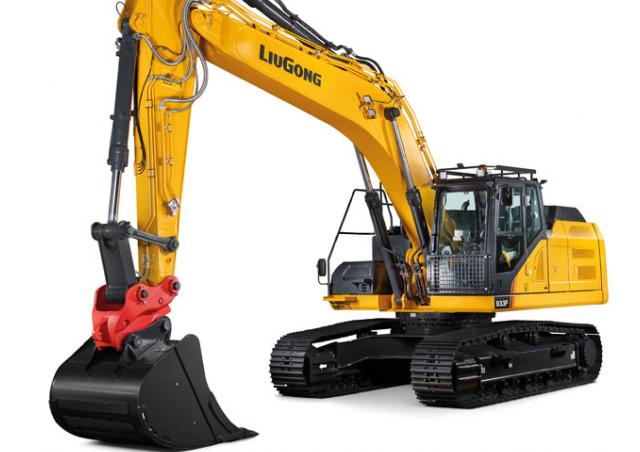

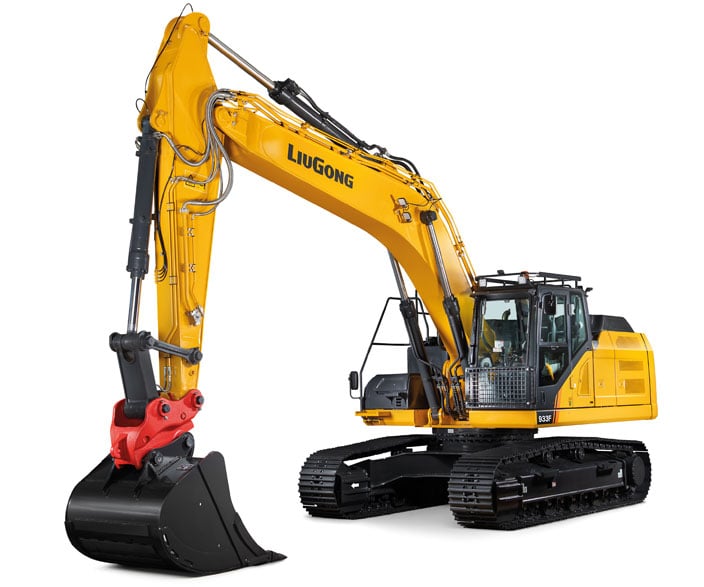

Crawler Excavators Liugong 933F

Visit Liugong live at

Technical specs - 933F Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
34.3 t
Transport length
10.65 m
Transport width
3.19 m
Transport height
3.525 m
Bucket capacity
1.4 m³
Track width
600 mm
Max. Reach horizontal
10.032 m
Dredging depth
6.825 m
Model series
F
Engine manuf.
Cummins
Engine type
B6.7
Engine power
173 kW
Displacement
6.7 l
Revolutions at max torque
1500 rpm
Max. torque
949 Nm
No. of cylinders
6
Cylinder bore x stroke
107x124 mm
Emission level
Stage V/Tier 4f

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No
