933E Liugong excavator specs & Dimensions (2019 - 2026)

Liugong 933E is a Crawler Excavator manufactured since 2019, with a weight of 31.8 tons. It features a track width of 700 mm, a tr…

Liugong 933E is a Crawler Excavator manufactured since 2019, with a weight of 31.8 tons. It features a track width of 700 mm, a transport length of 10.65 meters, a transport width of 3.29 meters, and a transport height of 3.525 meters. The excavator has a tear-out force of 187 kN, a dredging depth of 7.3 meters, and a maximum horizontal reach of 10.653 meters. It is equipped with a bucket capacity of 1.4 cubic meters and includes air conditioning as special equipment.

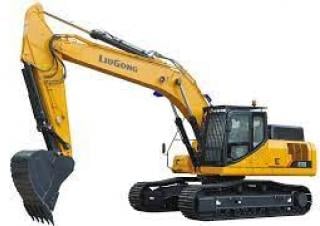

Crawler Excavators Liugong 933E

Visit Liugong live at

Technical specs - 933E Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
31.8 t
Transport length
10.65 m
Transport width
3.29 m
Transport height
3.525 m
Bucket capacity
1.4 m³
Track width
700 mm
Boom
MB
Max. Reach horizontal
10.653 m
Dredging depth
7.3 m
Tear-out force
187 kN
Model series
E
Engine manuf.
Cummins
Engine type
QSB7
Engine power
156 kW
Displacement
6.7 l
Revolutions at max torque
1300 rpm
Max. torque
895 Nm
No. of cylinders
6
Cylinder bore x stroke
107x124 mm
Emission level
EPA Tier 3 / EU Stage IIIA

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liugong 933E FAQ

When was the Liugong 933E manufactured?

The Liugong 933E was first produced in 2019.

How much does the Liugong 933E weigh?

The Liugong 933E weighs 31.8 tons.

What are the transport dimensions of the Liugong 933E crawler excavator?

The Liugong 933E has a transport length of 10.65 meters, a transport width of 3.29 meters, and a transport height of 3.53 meters.

What is the track width of the Liugong 933E's undercarriage?

The Liugong 933E has a track width of 700 mm.

What are the excavation performance specifications of the Liugong 933E crawler excavator?

The Liugong 933E crawler excavator has a dredging depth of 7.3 meters, a maximum horizontal reach of 10.653 meters, and features a monobloc boom.

What is the tear-out force of the Liugong 933E?

The Liugong 933E has a tear-out force of 187 kN.

What is the bucket capacity of the Liugong 933E crawler excavator?

The Liugong 933E crawler excavator has a bucket capacity of 1.4 cubic meters.

How much is a Liugong 933E Crawler excavator (2019u20132025) worth?

The residual value of the Liugong 933E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
