930E Liugong excavator specs & Dimensions (2019 - 2026)

Liugong 930E is a Crawler Excavator manufactured since 2019. It has a weight of 31.8 tons and a track width of 600 mm. The transpo…

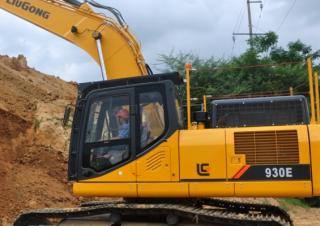

Liugong 930E is a Crawler Excavator manufactured since 2019. It has a weight of 31.8 tons and a track width of 600 mm. The transport dimensions are 10.65 meters in length, 3.19 meters in width, and 3.525 meters in height. The excavator features a tear-out force of 187 kN, a dredging depth of 7.3 meters, and a maximum horizontal reach of 10.653 meters. The bucket width is 1.4 meters with a capacity of 1.4 cubic meters. It is equipped with air conditioning.

Crawler Excavators Liugong 930E

Visit Liugong live at

Technical specs - 930E Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
31.8 t
Transport length
10.65 m
Transport width
3.19 m
Transport height
3.525 m
Bucket capacity
1.4 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.653 m
Dredging depth
7.3 m
Tear-out force
187 kN
Bucket width
1.4 m
Model series
E
Engine manuf.
Cummins
Engine type
6C-8.3
Engine power
152 kW
Displacement
8.3 l
Revolutions at max torque
1900 rpm
Max. torque
973/1300 Nm
No. of cylinders
6
Cylinder bore x stroke
114x135 mm
Emission level
Tier 2/EU II

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Liugong 930E FAQ

When was the Liugong 930E manufactured?

The Liugong 930E was first produced in 2019.

How much does the Liugong 930E weigh?

The Liugong 930E weighs 31.8 tons.

What are the transport dimensions of the Liugong 930E crawler excavator?

The Liugong 930E crawler excavator has a transport length of 10.65 meters, a transport width of 3.19 meters, and a transport height of 3.53 meters.

What is the track width of the Liugong 930E crawler excavator?

The Liugong 930E crawler excavator has a track width of 600 mm.

What are the excavation performance specifications of the Liugong 930E crawler excavator?

The Liugong 930E crawler excavator has a dredging depth of 7.3 meters, a maximum horizontal reach of 10.653 meters, and features a Monobloc boom.

What are the power ratings of the Liugong 930E?

There are no power rating specifications available for the Liugong 930E in the provided data.

What are the bucket specifications of the Liugong 930E crawler excavator?

The Liugong 930E has a bucket capacity of 1.4 cubic meters and a bucket width of 1.4 meters.

How much is a Liugong 930E Crawler excavator (2019u20132025) worth?

The residual value of the Liugong 930E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
