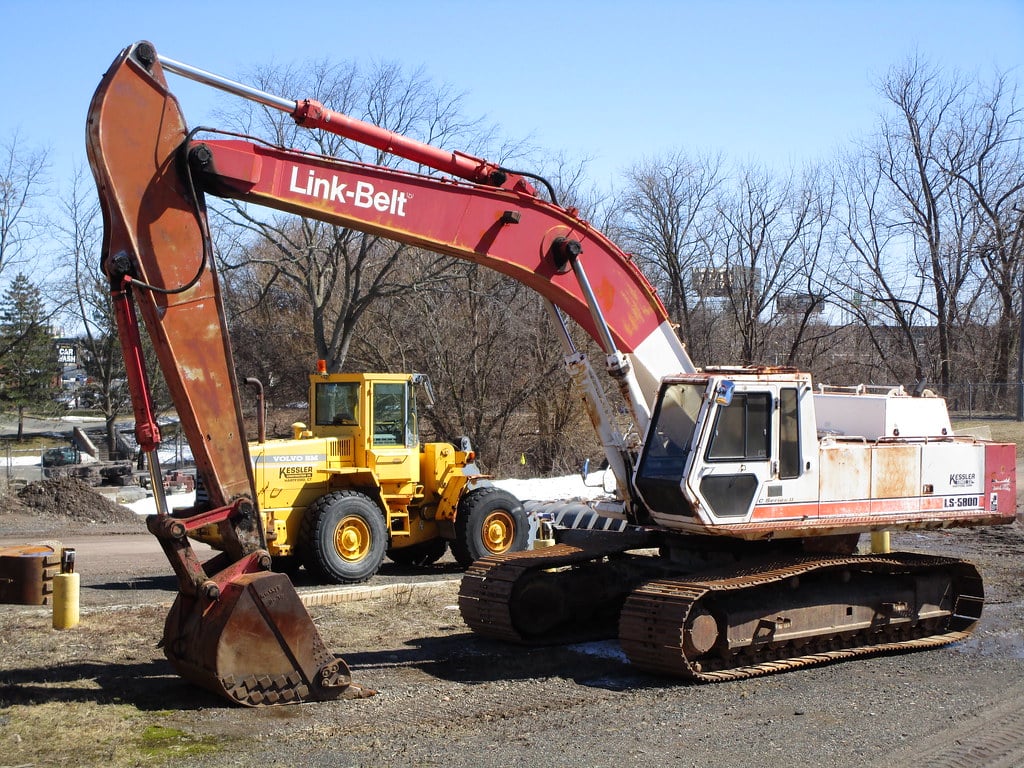

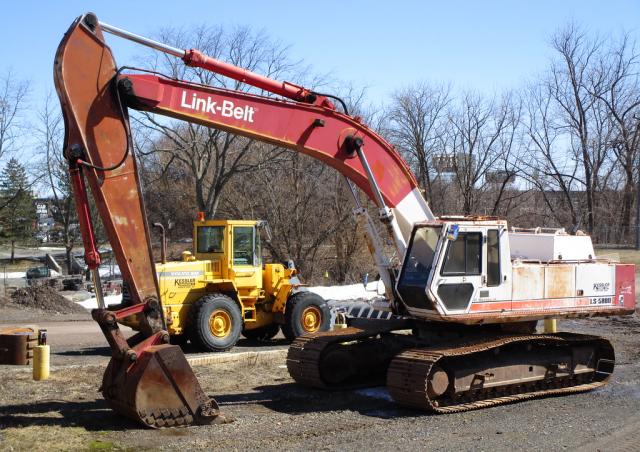

LS-5800A Link-Belt excavator specs & Dimensions (1985 - 1988)

Link-Belt LS-5800A is a crawler excavator manufactured from 1985 to 1988. It has a weight of 46.061 tons and a track width of 910 …

Link-Belt LS-5800A is a crawler excavator manufactured from 1985 to 1988. It has a weight of 46.061 tons and a track width of 910 mm. The transport dimensions are 12 meters in length, 3 meters in width, and 3 meters in height. The bucket width is 1.555 meters, with a bucket capacity ranging from 1 to 2 cubic meters. Special equipment includes cabin adjustment and track adjustment.

Crawler Excavators Link-Belt LS-5800A

Technical specs - LS-5800A Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
46.061 t
Transport length
12 m
Transport width
3 m
Transport height
3 m
Bucket capacity min.
1 m³
Bucket capacity max.
2 m³
Undercarriage
SL
Track width
910 mm
Boom
MB
Max. Reach horizontal
14.12 m
Dredging depth
10.16 m
Bucket width
1.555 m
Engine manuf.
Isuzu
Engine type
6RB1T
Engine power
196 kW
Displacement
13735 l
Revolutions at max torque
1400 rpm
Max. torque
1091 Nm
No. of cylinders
6
Cylinder bore x stroke
135 x 160 mm

More technical details, like: bucket capacity, tear-out force, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt LS-5800A FAQ

When was the Link-Belt LS-5800A manufactured?

The Link-Belt LS-5800A was manufactured from 1985 to 1988.

How much does the Link-Belt LS-5800A weigh?

The Link-Belt LS-5800A weighs 46.06 tons.

What are the transport dimensions of the Link-Belt LS-5800A crawler excavator?

The Link-Belt LS-5800A has a transport length of 12 meters, a transport width of 3 meters, and a transport height of 3 meters.

What are the undercarriage specifications of the Link-Belt LS-5800A?

The Link-Belt LS-5800A has a standard undercarriage with a track width of 910 mm.

What are the excavation performance specifications of the Link-Belt LS-5800A crawler excavator?

The Link-Belt LS-5800A crawler excavator has a dredging depth of 10.16 meters, a maximum horizontal reach of 14.12 meters, and is equipped with a monobloc boom.

What are the specifications of the bucket on the Link-Belt LS-5800A crawler excavator?

The Link-Belt LS-5800A has a bucket with a capacity ranging from 1 to 2 cubic meters and a width of 1.555 meters.
