5800 Link-Belt excavator specs & Dimensions (1998 - 2023)

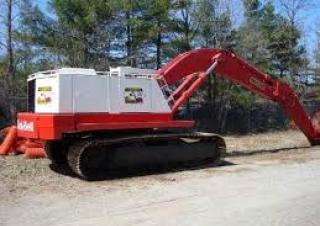

Link-Belt 5800 is a Crawler Excavator manufactured since 1998, with a weight of 45.269 tons. It features a track width of 900 mm, …

Link-Belt 5800 is a Crawler Excavator manufactured since 1998, with a weight of 45.269 tons. It features a track width of 900 mm, a transport length of 12 meters, a transport width of 3 meters, and a transport height of 4 meters. The bucket width is 1.676 meters, and the maximum bucket capacity is 3 cubic meters. Special equipment includes a diesel particulate filter and track adjustment.

Crawler Excavators Link-Belt 5800

Technical specs - 5800 Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
45.269 t
Transport length
12 m
Transport width
3 m
Transport height
4 m
Bucket capacity max.
3 m³
Track width
900 mm
Boom
MB
Max. Reach horizontal
13.78 m
Dredging depth
9.79 m
Tear-out force
240.45 kN
Bucket width
1.676 m
Engine manuf.
Cummins
Engine type
MllC320-1.5c
Engine power
224 kW
Displacement
10.8 l
Revolutions at max torque
1300 rpm
Max. torque
1234 Nm
No. of cylinders
6
Cylinder bore x stroke
125 x 147 mm

More technical details, like: bucket capacity, bucket capacity min., undercarriage, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 5800 FAQ

When was the Link-Belt 5800 manufactured?

The Link-Belt 5800 was manufactured from 1998 until 2023.

How much does the Link-Belt 5800 weigh?

The Link-Belt 5800 weighs 45.27 tons.

What are the transport dimensions of the Link-Belt 5800 crawler excavator?

The Link-Belt 5800 has a transport length of 12 meters, a width of 3 meters, and a height of 4 meters.

What is the track width of the Link-Belt 5800 crawler excavator?

The Link-Belt 5800 crawler excavator has a track width of 900 mm.

What are the excavation performance specifications of the Link-Belt 5800 crawler excavator?

The Link-Belt 5800 crawler excavator has a dredging depth of 9.79 meters, a maximum horizontal reach of 13.78 meters, and features a monobloc boom.

What are the power ratings of the Link-Belt 5800?

There are no power ratings available for the Link-Belt 5800 in the provided data.

What are the specifications of the primary work tool on the Link-Belt 5800?

The primary work tool of the Link-Belt 5800 has a maximum bucket capacity of 3 cubic meters and a bucket width of 1.676 meters.

How much is a Link-Belt 5800 Crawler excavator (1998u20132023) worth?

The residual value of the Link-Belt 5800 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Link-Belt 5800 overview

Hydraulic and electronic system

Hydraulic System

Two variable displacement axial piston pumps and one gear pump for pilot controls, with Link-Belt Intelligent Quantum (IQ) Control. Link-Belt IQ Control includes: four selectable working modes, presettable allied attachment work mode, free swing, one-touch decelerator, auto idling system, power up mode, boom priority mode, telescopic attachment control, and three safety lockout switches including auto lock.


Intelligent Quantum (IQ) Control

The mode selection system enables the operator to program the machine's speed to the job application. H: Heavy Mode For heavy digging jobs, or any time you need extra power. S: Standard Mode For standard digging and loading operations. L: Light Mode For grading and other jobs where safety and precision are more important than power. F: Fine Mode For lifting and operations that need fingertip accuracy.


Additional Features

Power Up Button: 9% power increase at the touch of a button. Boom Priority Mode: Increases boom/hoist speed relative to swing, maximizing efficiency when loading within a 90° work area (Standard on 4300 & 5800). One-Touch Decelerator or Auto Idling: The operator has the choice of one-touch decelerator or programmable auto idling. Hand Grab Rails: Standard on operator's cab and on top of both sides of the machinery house. Boom Holding Valves.


Undercarriage

Undercarriage

X-style carbody is integrally welded for strength and durability. Grease cylinder track adjusters with shock absorbing springs. LC undercarriage with sealed track, lubricated rollers and idlers. Triple grouser track shoes. Carrier rollers 2 per side. Track rollers 9 per side. Shoes 51 per side. Shoe width 35.4" (900 mm). Ground pressure 7.68 psi (54 kg/cm²). Alternating inner and outer flanged rollers are used to assure proper track rail to roller engagement.


Upper Structure

Swing Features

Swing Selectable free swing mode provides extra smooth swing. Integral swing cushion valve for smooth stops. Carbody X-style carbody for excellent durability. Three Speed Travel Low, mid-range, and high speed controlled by foot switch. Automatic downshift function automatically shifts machine from high to mid-range speed when traveling on an incline for increased traction. (Standard on 2800, 3400, 4300 and 5800). Alternating Inner/Outer Flanged Rollers Assures proper rail engagement; filled with synthetic oil. Operator's Seat Reclining/sliding fully suspended seat for all day comfort. Control Console 4-position tilting/sliding. Undercovers Fully covered upper and lower.


Cab

Cab and Controls

Cab mounted on 6 fluid filled mountings. Features include a safety glass front window and LEXAN™ MARGARD™ rear and side windows, reclining/sliding cloth upholstered suspension seat with headrest and armrests, heater, selector fan, AM/FM radio, cigarette lighter, pop-up skylight window, and intermittent wiper with washer. A compartment located for storage and lower front window is removable. Control levers are located in 4-position tilting control consoles. Reliable soft-touch switches. Easy-to-read illuminated LCD service monitor keeps operator in touch with critical machine functions.


Operator's Control Station

Operator's Control Station mounted on 6 fluid mountings with: heater, oscillating fan, seat belt, horn, dome light, AM/FM radio, digital clock, and 3 safety control lockouts including a gate lock safety shutoff.


Cooling System

Remote Mounted Severe Duty Cooler driven by a separate fan, this high capacity cooling package cools the hydraulic oil for all-day, efficient operation. (Standard on 5800). Superior Visibility is provided by a slightly glass front window. LEXAN MARGARD rear window and side windows eliminate the need for vandal covers.
