460 X2 Link-Belt excavator specs & Dimensions (2011 - 2019)

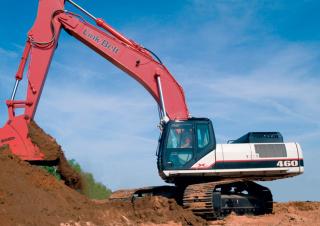

Link-Belt 460 X2 is a crawler excavator manufactured from 2011 to 2019. It has a weight of 47.9 tons and a track width of 900 mm. …

Link-Belt 460 X2 is a crawler excavator manufactured from 2011 to 2019. It has a weight of 47.9 tons and a track width of 900 mm. The transport dimensions are 12.01 meters in length, 3.65 meters in width, and 3.6 meters in height. The excavator features a tear-out force of 247 kN, a dredging depth of 7.72 meters, and a maximum horizontal reach of 12.33 meters. The bucket capacity is 3.1 cubic meters.

Crawler Excavators Link-Belt 460 X2

Technical specs - 460 X2 Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
47.9 t
Transport length
12.01 m
Transport width
3.65 m
Transport height
3.6 m
Bucket capacity
3.1 m³
Track width
900 mm
Boom
MB
Max. Reach horizontal
12.33 m
Dredging depth
7.72 m
Tear-out force
247 kN
Model series
X2
Engine manuf.
Isuzu
Engine type
AH-6UZ1XYSS
Engine power
245 kW
Displacement
9.8 l
Revolutions at max torque
1950 rpm
Max. torque
1435/1500 Nm
No. of cylinders
6
Emission level
Tier 3

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 460 X2 FAQ

When was the Link-Belt 460 X2 manufactured?

The Link-Belt 460 X2 was manufactured from 2011 to 2019.

How much does the Link-Belt 460 X2 weigh?

The Link-Belt 460 X2 weighs 47.9 tons.

What are the transport dimensions of the Link-Belt 460 X2 crawler excavator?

The Link-Belt 460 X2 has a transport length of 12.01 meters, a transport width of 3.65 meters, and a transport height of 3.6 meters.

What is the track width of the Link-Belt 460 X2's undercarriage?

The Link-Belt 460 X2 has a track width of 900 mm.

What are the excavation performance specifications of the Link-Belt 460 X2?

The Link-Belt 460 X2 has a dredging depth of 7.72 meters, a maximum horizontal reach of 12.33 meters, and is equipped with a Monobloc boom.

What power ratings are available for the Link-Belt 460 X2?

The source data does not provide any power ratings for the Link-Belt 460 X2.

What is the bucket capacity of the Link-Belt 460 X2 crawler excavator?

The bucket capacity of the Link-Belt 460 X2 crawler excavator is 3.1 cubic meters.

How much is a Link-Belt 460 X2 Crawler excavator (2011u20132019) worth?

The residual value of the Link-Belt 460 X2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
