350 X4 Long Front Link-Belt excavator specs & Dimensions (2019 - 2026)

Link-Belt 350 X4 Long Front is a Crawler Excavator manufactured since 2019. It has a weight of 40 tons and a track width of 800 mm…

Link-Belt 350 X4 Long Front is a Crawler Excavator manufactured since 2019. It has a weight of 40 tons and a track width of 800 mm. The transport dimensions are 15.48 meters in length, 3.5 meters in width, and 3.47 meters in height. The excavator features a tear-out force of 109 kN, a dredging depth of 14.1 meters, and a maximum horizontal reach of 18.66 meters. The bucket capacity ranges from a minimum of 0.5 m³ to a maximum of 1.07 m³.

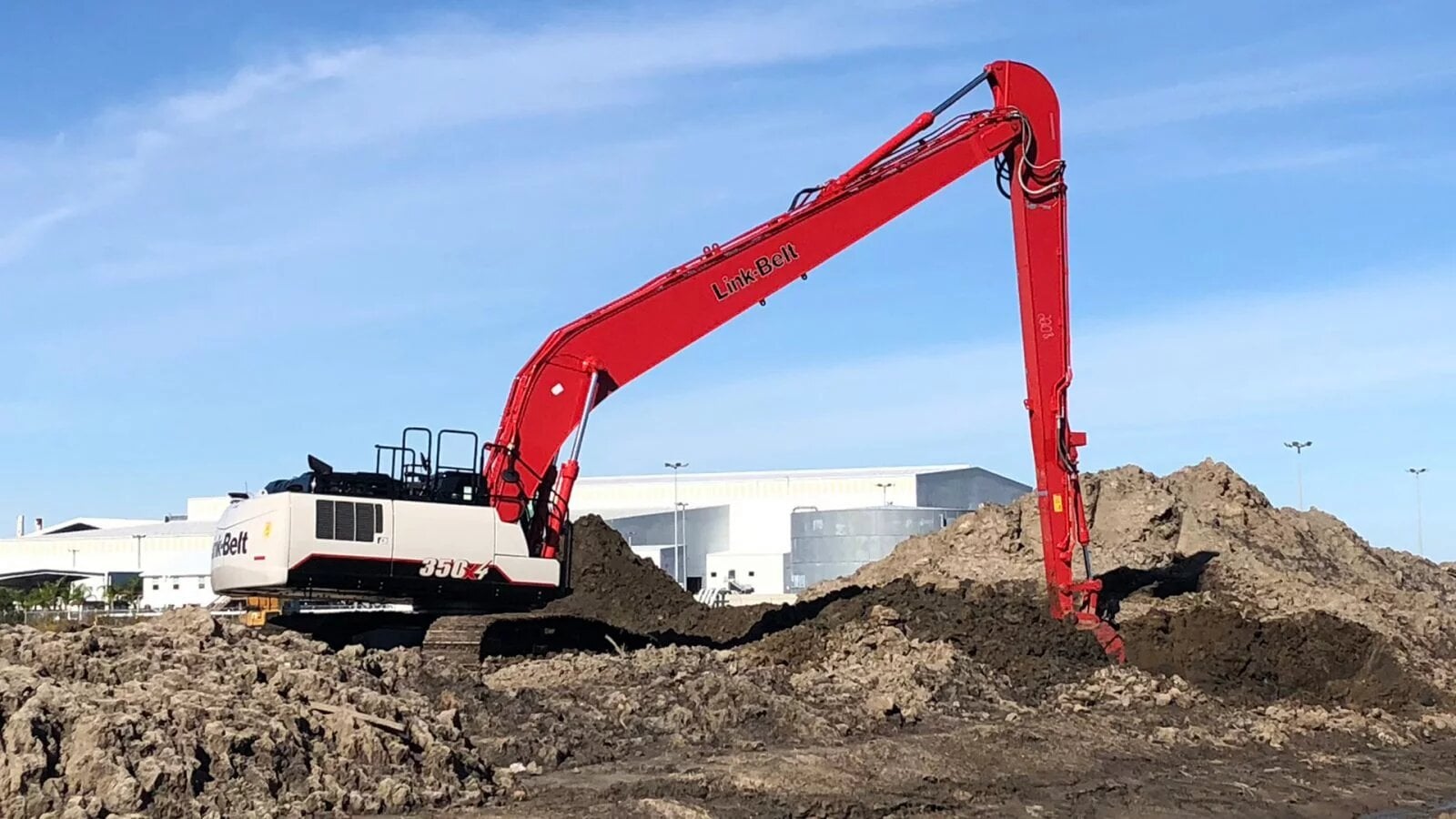

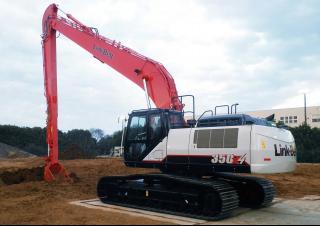

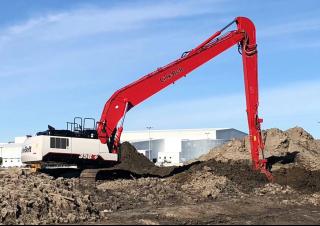

Crawler Excavators Link-Belt 350 X4 Long Front
Crawler Excavators Link-Belt 350 X4 Long Front
Crawler Excavators Link-Belt 350 X4 Long Front
Crawler Excavators Link-Belt 350 X4 Long Front
Crawler Excavators Link-Belt 350 X4 Long Front
Crawler Excavators Link-Belt 350 X4 Long Front
Crawler Excavators Link-Belt 350 X4 Long Front
Crawler Excavators Link-Belt 350 X4 Long Front

Technical specs - 350 X4 Long Front Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
40 t
Transport length
15.48 m
Transport width
3.5 m
Transport height
3.47 m
Bucket capacity
1.07 m³
Bucket capacity min.
0.5 m³
Bucket capacity max.
1.07 m³
Track width
800 mm
Max. Reach horizontal
18.66 m
Dredging depth
14.1 m
Tear-out force
109 kN
Model series
X4
Engine manuf.
Isuzu
Engine type
AQ-6HK1X
Engine power
200 kW
Displacement
7.8 l
Revolutions at max torque
1500 rpm
Max. torque
988 Nm
No. of cylinders
6
Emission level
Tier 4f

More technical details, like: undercarriage, boom, bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 350 X4 Long Front FAQ

When was the Link-Belt 350 X4 Long Front manufactured?

The Link-Belt 350 X4 Long Front was first produced in 2019.

How much does the Link-Belt 350 X4 Long Front weigh?

The Link-Belt 350 X4 Long Front weighs 40 tons.

What are the transport dimensions of the Link-Belt 350 X4 Long Front crawler excavator?

The Link-Belt 350 X4 Long Front crawler excavator has a transport length of 15.48 meters, a transport width of 3.5 meters, and a transport height of 3.47 meters.

What is the track width of the Link-Belt 350 X4 Long Front's undercarriage?

The Link-Belt 350 X4 Long Front has a track width of 800 mm.

What are the dredging depth and maximum horizontal reach of the Link-Belt 350 X4 Long Front?

The Link-Belt 350 X4 Long Front has a dredging depth of 14.1 meters and a maximum horizontal reach of 18.66 meters.

What is the tear-out force of the Link-Belt 350 X4 Long Front?

The Link-Belt 350 X4 Long Front has a tear-out force of 109 kN.

What are the bucket capacity specifications of the Link-Belt 350 X4 Long Front excavator?

The Link-Belt 350 X4 Long Front excavator has a bucket capacity ranging from 0.5 to 1.07 cubic meters.
