3240 TL Link-Belt excavator specs & Dimensions (2019 - 2026)

Link-Belt 3240 TL is a crawler excavator manufactured since 2019. It has a weight of 35.26 tons and a track width of 700 mm. The t…

Link-Belt 3240 TL is a crawler excavator manufactured since 2019. It has a weight of 35.26 tons and a track width of 700 mm. The transport dimensions are 13.47 meters in length, 3.5 meters in width, and 4.74 meters in height. The dredging depth is 3.74 meters, and the maximum horizontal reach is 10.89 meters.

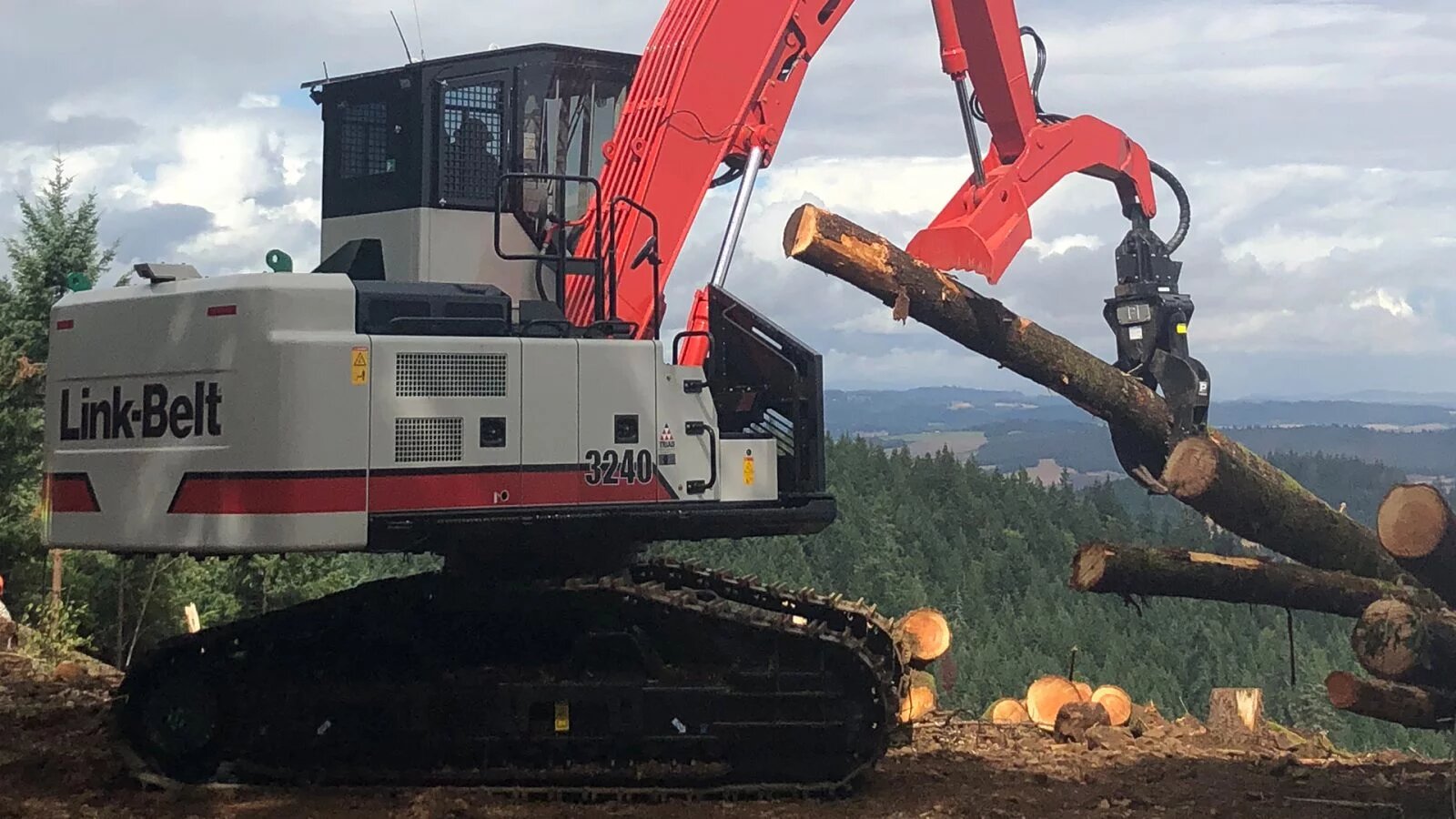

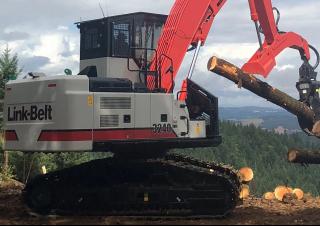

Crawler Excavators Link-Belt 3240 TL
Crawler Excavators Link-Belt 3240 TL
Crawler Excavators Link-Belt 3240 TL
Crawler Excavators Link-Belt 3240 TL

Technical specs - 3240 TL Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
35.26 t
Transport length
13.47 m
Transport width
3.5 m
Transport height
4.74 m
Track width
700 mm
Max. Reach horizontal
10.89 m
Dredging depth
3.74 m
Model series
3240
Engine manuf.
Isuzu
Engine type
AR-4HK1X
Engine power
119.3 kW
Displacement
5.2 l
Revolutions at max torque
1600 rpm
Max. torque
620 Nm
No. of cylinders
4
Emission level
Tier 4f

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 3240 TL FAQ

When was the Link-Belt 3240 TL manufactured?

The Link-Belt 3240 TL was first produced in 2019.

How much does the Link-Belt 3240 TL weigh?

The Link-Belt 3240 TL weighs 35.26 tons.

What are the transport dimensions of the Link-Belt 3240 TL crawler excavator?

The Link-Belt 3240 TL has a transport length of 13.47 meters, a transport width of 3.5 meters, and a transport height of 4.74 meters.

What is the track width of the Link-Belt 3240 TL's undercarriage?

The Link-Belt 3240 TL has a track width of 700 mm.

What are the excavation performance specifications of the Link-Belt 3240 TL?

The Link-Belt 3240 TL has a dredging depth of 3.74 meters and a maximum horizontal reach of 10.89 meters.

How much is a Link-Belt 3240 TL Crawler excavator (2019u20132025) worth?

The residual value of the Link-Belt 3240 TL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Link-Belt 3240 TL overview

Link-Belt 3240 TL features overview

Purpose-Built for the Work You Do

Link-Belt Forestry machines are designed and built with you in mind. Whether you're pioneering sites, building access roads, harvesting timber, processing logs or loading trucks at the mill yard, we've got the right equipment for the job. The new Link-Belt 3240 forestry machine features a powerful, fuel-efficient Final Tier 4 engine that doesn't require a DPF, matched to a larger fuel tank that keeps you working longer. 3240 forestry machines offer improved cycle times, improved swing torque, and better fuel economy. This attention to detail insures that Link-Belt Forestry machines deliver outstanding performance and productivity where it matters most. We focus on the machine so you can focus on your work.


Road Builders

For tasks such as pioneering, construction and maintenance of access roads and right-of-way logging, we've got the right machines for the job. Our road builders are built to move boulders, dig trenches or clear debris with ease.


Undercarriage

Timber Loaders

We've earned our reputation for building strong and dependable log loaders for use in the woods or millyards. Our loaders can be equipped with Fixed or Live-Heel booms to handle large diameter logs and tree-length loads. Or choose from a variety of Butt-N-Top grapple options to match your needs perfectly.


Upper Structure

Processors

Link-Belt Forestry swing machines are designed to be configured as high-capacity timber processors with your choice of harvesting heads. Choose high-wide or high-narrow undercarriage, single-bar or three-bar grouser shoes to match your application perfectly.
