3240 RB Link-Belt excavator specs & Dimensions (2019 - 2026)

Link-Belt 3240 RB is a crawler excavator manufactured since 2019, with a weight of 33.6 tons. It features a track width of 700 mm,…

Link-Belt 3240 RB is a crawler excavator manufactured since 2019, with a weight of 33.6 tons. It features a track width of 700 mm, a transport length of 9.67 meters, a transport width of 3.5 meters, and a transport height of 3.77 meters. The machine has a dredging depth of 5.18 meters and a maximum horizontal reach of 9.66 meters.

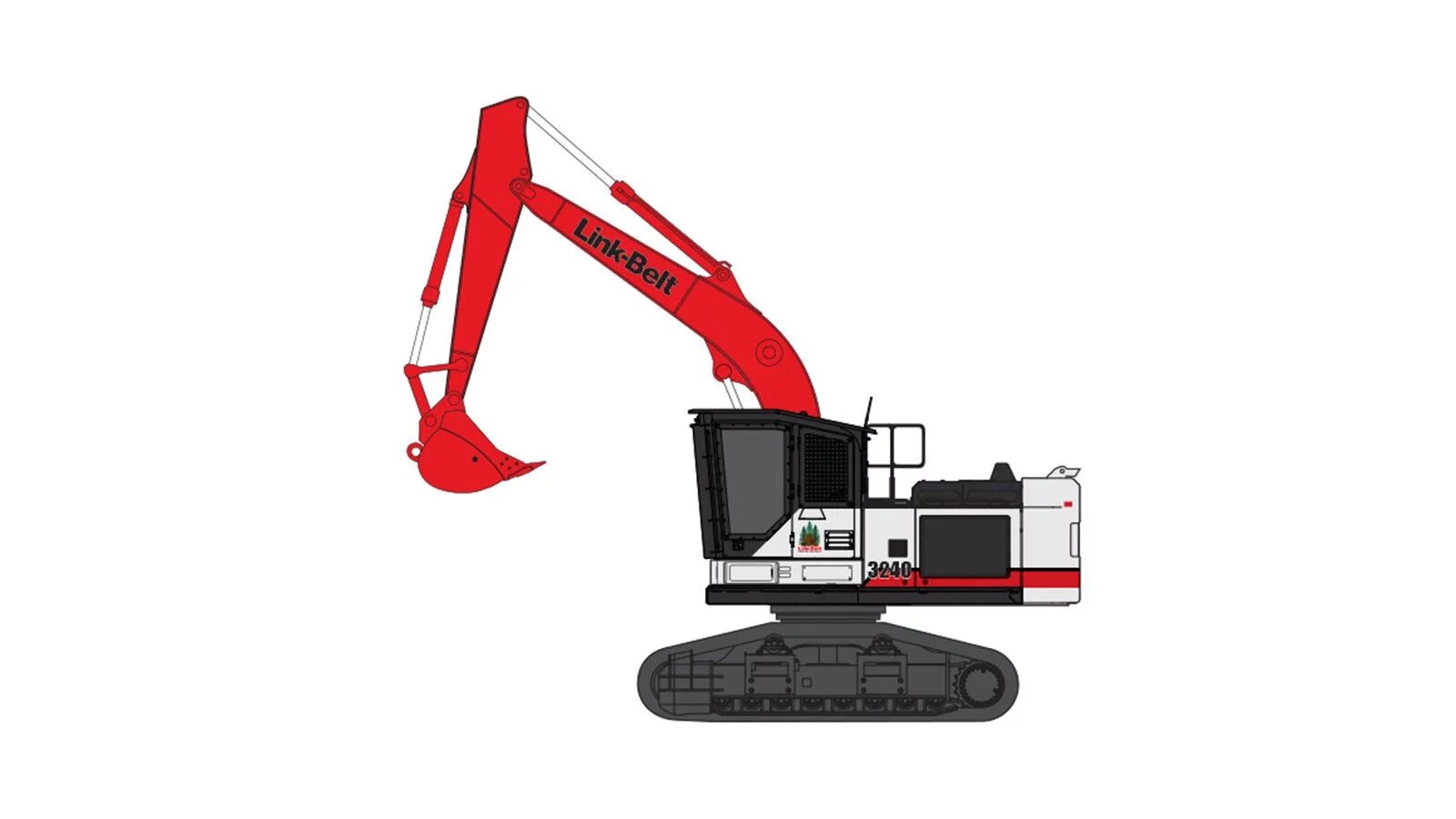

Crawler Excavators Link-Belt 3240 RB

Technical specs - 3240 RB Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
33.6 t
Transport length
9.67 m
Transport width
3.5 m
Transport height
3.77 m
Track width
700 mm
Max. Reach horizontal
9.66 m
Dredging depth
5.18 m
Model series
3240
Engine manuf.
Isuzu
Engine type
AR-4HK1X
Engine power
119.3 kW
Displacement
5.2 l
Revolutions at max torque
1600 rpm
Max. torque
620 Nm
No. of cylinders
4
Emission level
Tier 4f

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 3240 RB FAQ

When was the Link-Belt 3240 RB manufactured?

The Link-Belt 3240 RB was first produced in 2019.

How much does the Link-Belt 3240 RB weigh?

The Link-Belt 3240 RB weighs 33.6 tons.

What are the transport dimensions of the Link-Belt 3240 RB crawler excavator?

The Link-Belt 3240 RB crawler excavator has a transport length of 9.67 meters, a transport width of 3.5 meters, and a transport height of 3.77 meters.

What is the track width of the Link-Belt 3240 RB's undercarriage?

The Link-Belt 3240 RB has a track width of 700 mm.

What are the excavation performance specifications of the Link-Belt 3240 RB?

The Link-Belt 3240 RB has a dredging depth of 5.18 meters and a maximum horizontal reach of 9.66 meters.
