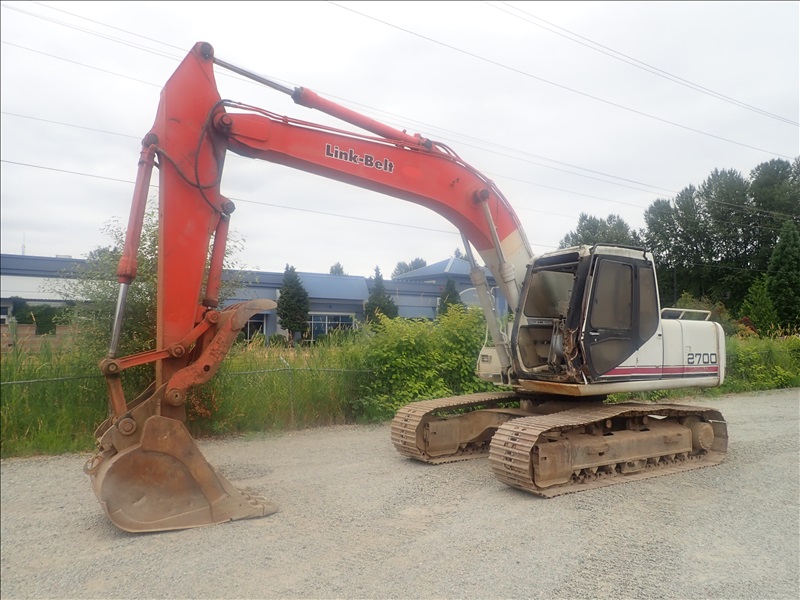

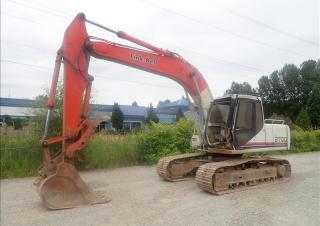

2700 Link-Belt excavator specs & Dimensions (1995 - 2023)

Link-Belt 2700 is a Crawler Excavator manufactured since 1995. It has a weight of 15 tons and a track width of 600 mm. The transpo…

Link-Belt 2700 is a Crawler Excavator manufactured since 1995. It has a weight of 15 tons and a track width of 600 mm. The transport dimensions are 8 meters in length, 2 meters in width, and 3 meters in height. The machine features a tear-out force of 101 kN, a dredging depth of 6 meters, and a maximum horizontal reach of 9 meters. Special equipment includes a diesel particulate filter and track adjustment.

Crawler Excavators Link-Belt 2700

Technical specs - 2700 Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.98 t
Transport length
8.4 m
Transport width
2.59 m
Transport height
3.1 m
Bucket capacity min.
0.38 m³
Bucket capacity max.
0.67 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
6.48 m
Dredging depth
6.46 m
Tear-out force
101.01 kN
Bucket width
0.99 m
Engine manuf.
Isuzu
Engine type
4BD1T
Engine power
75 kW
Displacement
3.856 l
Revolutions at max torque
1600 rpm
Max. torque
287 Nm
No. of cylinders
4
Cylinder bore x stroke
102 x 118 mm

More technical details, like: bucket capacity, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 2700 FAQ

When was the Link-Belt 2700 manufactured?

The Link-Belt 2700 was manufactured from 1995 until 2023.

How much does the Link-Belt 2700 weigh?

The Link-Belt 2700 weighs 15.98 tons.

What are the transport dimensions of the Link-Belt 2700 crawler excavator?

The Link-Belt 2700 has a transport length of 8.4 meters, a transport width of 2.59 meters, and a transport height of 3.1 meters.

What are the undercarriage specifications of the Link-Belt 2700 crawler excavator?

The Link-Belt 2700 crawler excavator has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the Link-Belt 2700 crawler excavator?

The Link-Belt 2700 crawler excavator has a dredging depth of 6.46 meters, a maximum horizontal reach of 6.48 meters, and features a monobloc boom.

What are the power ratings of the Link-Belt 2700?

There are no power rating specifications available for the Link-Belt 2700 in the provided data.

What are the specifications of the primary work tool bucket on the Link-Belt 2700?

The primary work tool bucket of the Link-Belt 2700 has a maximum capacity of 0.67 cubic meters, a minimum capacity of 0.38 cubic meters, and a width of 0.99 meters.

How much is a Link-Belt 2700 Crawler excavator (1995u20132023) worth?

The residual value of the Link-Belt 2700 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Link-Belt 2700 overview

Hydraulic and electronic system

Hydraulic System

Two variable displacement axial piston pumps and one gear pump for pilot controls, with Link-Belt Intelligent Quantum (IQ) Control. Link-Belt IQ Control includes: four selectable working modes, preselectable allied attachment work mode, free swing, one-touch decelerator, auto idling system, power up mode, selectable cushion attachment control, and three safety lockout switches including two on the joysticks.


Cab

Cab and Controls

Cab mounted on 6 fluid filled mountings. Features include a safety glass front window and LEXAN® MARGARD® rear and side windows, reclining/sliding cloth upholstered suspension seat with headrest and armrests, heater, oscillating fan, AM/FM radio, cigarette lighter, pop-up skylight window, and intermittent wiper with washer. Front window slides upward for storage and the lower front window is removable. Control levers are located in 4-position tilting consoles. Reliable soft-touch switches. Easy-to-read illuminated LCD service monitor keeps operator in touch with critical machine functions.
