170 X4S Link-Belt excavator specs & Dimensions (2023 - 2026)

Weight: 17.9t – Transport length: 8.57m – Transport width: 2.69m – Transport height: 3.13m – Bucket capacity: 0.5m³ – Bucket capac…

Weight: 17.9t – Transport length: 8.57m – Transport width: 2.69m – Transport height: 3.13m – Bucket capacity: 0.5m³ – Bucket capacity min.: 0.5m³

Check out detailed specifications, information and technical data for Link-Belt 170 X4S excavator manufactured between 2023 - 2026. Get more in-depth insight with Link-Belt 170 X4S digger specifications. See information, like: Weight: 17.9t – Transport length: 8.57m – Transport width: 2.69m – Transport height: 3.13m – Bucket capacity: 0.5m³ – Bucket capacity min.: 0.5m³ and more.

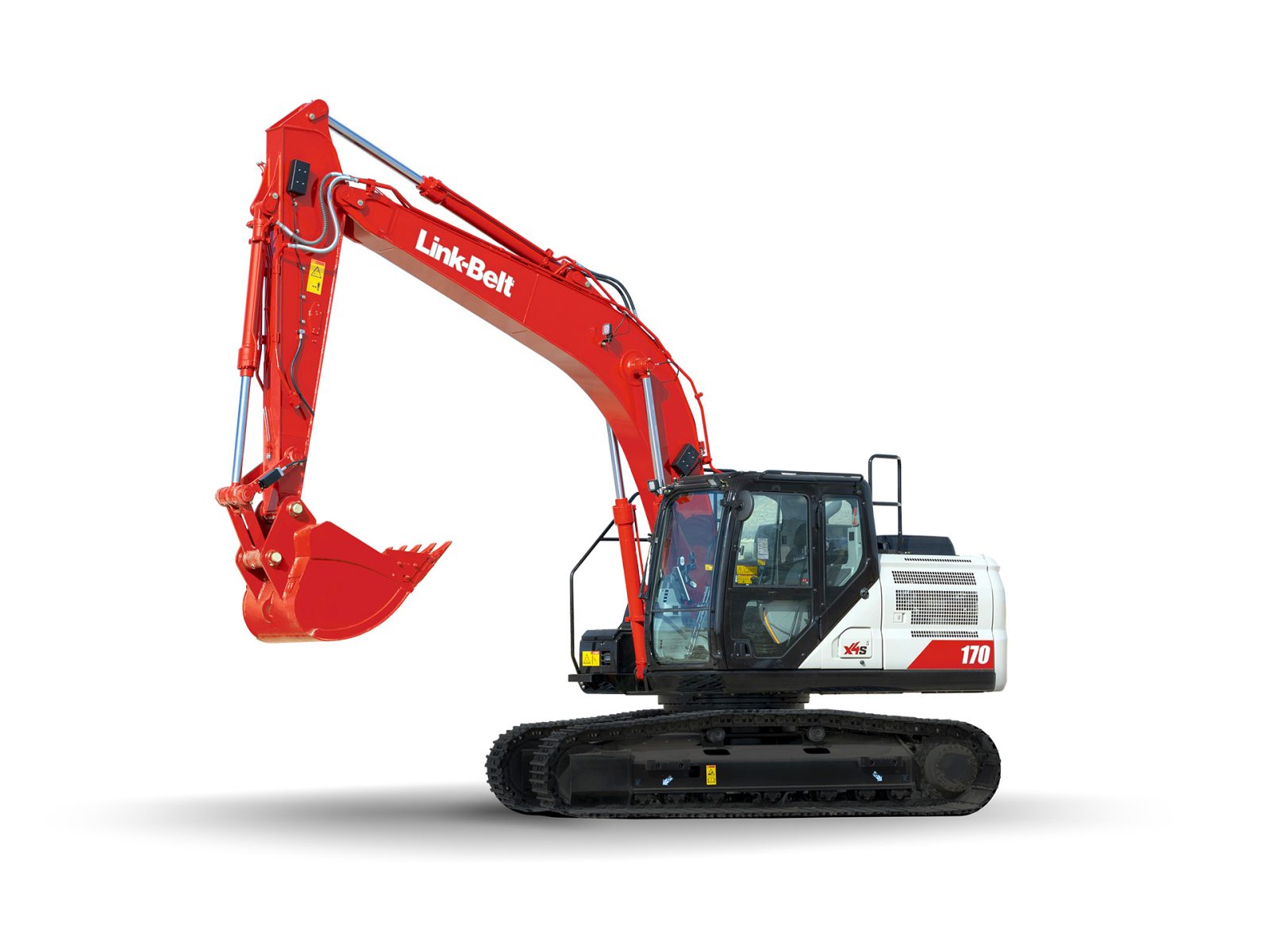

Crawler Excavators Link-Belt 170 X4S

Technical specs - 170 X4S Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.9 t
Transport length
8.57 m
Transport width
2.69 m
Transport height
3.13 m
Bucket capacity
0.5 m³
Bucket capacity min.
0.5 m³
Bucket capacity max.
1.35 m³
Track width
600 mm
Max. Reach horizontal
8.87 m
Dredging depth
6.06 m
Tear-out force
118 kN
Model series
X4
Engine manuf.
Yanmar
Engine type
4TN107FHT-4SSH1
Engine power
89.7 kW
Displacement
4.57 l
Revolutions at max torque
1500 rpm
Max. torque
589 Nm
Cylinder bore x stroke
115 x 1179 mm
Emission level
Tier 4 Final

More technical details, like: undercarriage, boom, bucket width, dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 170 X4S FAQ

When was the Link-Belt 170 X4S manufactured?

The Link-Belt 170 X4S was first produced in 2023.

How much does the Link-Belt 170 X4S weigh?

The Link-Belt 170 X4S weighs 17.9 tons.

What are the transport dimensions of the Link-Belt 170 X4S crawler excavator?

The Link-Belt 170 X4S crawler excavator has a transport length of 8.57 meters, a transport width of 2.69 meters, and a transport height of 3.13 meters.

What is the track width of the Link-Belt 170 X4S's undercarriage?

The Link-Belt 170 X4S has a track width of 600 mm.

What is the excavation performance of the Link-Belt 170 X4S?

The Link-Belt 170 X4S has a dredging depth of 6.06 meters and a maximum horizontal reach of 8.87 meters.

What is the tear-out force of the Link-Belt 170 X4S, given that power rating data is not available?

Power rating data for the Link-Belt 170 X4S is not available. However, it has a tear-out force of 118 kN.

What are the bucket capacity specifications of the Link-Belt 170 X4S excavator?

The Link-Belt 170 X4S excavator has a bucket capacity ranging from 0.5 mu00b3 to 1.35 mu00b3.

How much is a Link-Belt 170 X4S Crawler excavator (2023u20132025) worth?

The residual value of the Link-Belt 170 X4S depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
