160 LX Link-Belt excavator specs & Dimensions (2003 - 2012)

Link-Belt 160 LX is a Crawler Excavator manufactured from 2003 to 2012, with a weight of 16 tons. It features a track width of 600…

Link-Belt 160 LX is a Crawler Excavator manufactured from 2003 to 2012, with a weight of 16 tons. It features a track width of 600 mm, a transport length of 8 meters, a transport width of 2 meters, and a transport height of 3 meters. The machine has a tear-out force of 112 kN and a bucket width of 1.676 meters. Special equipment includes air conditioning, a blade, a diesel particulate filter, and track adjustment.

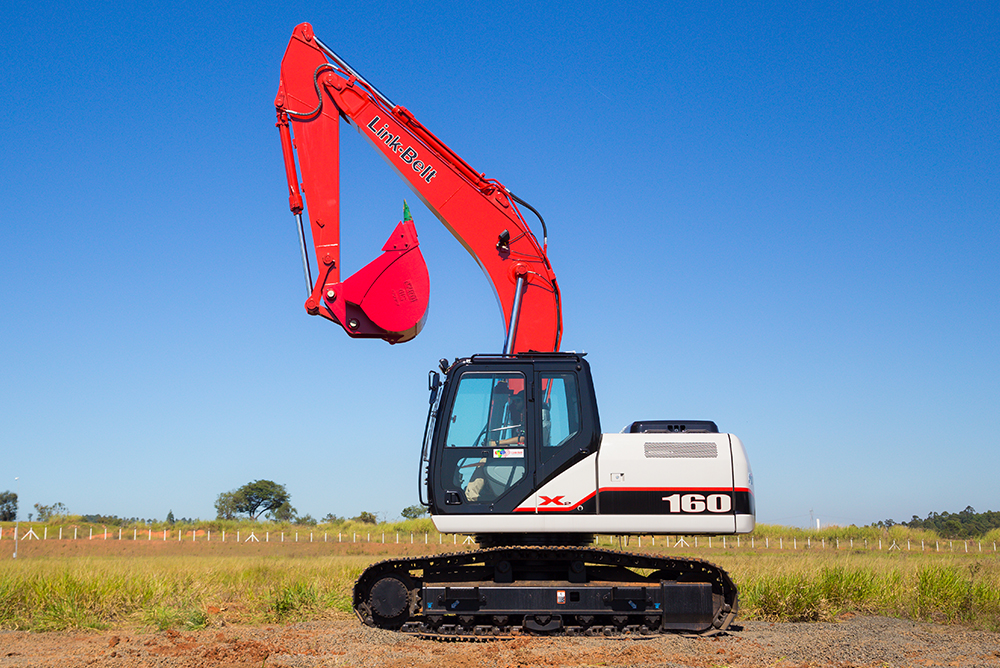

Crawler Excavators Link-Belt 160 LX

Technical specs - 160 LX Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16 t
Transport length
8 m
Transport width
2 m
Transport height
3 m
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.48 m
Dredging depth
6.45 m
Tear-out force
112 kN
Bucket width
1.676 m
Engine manuf.
Isuzu
Engine type
DD-4BG1T
Engine power
75 kW
Displacement
4.33 l
Revolutions at max torque
1600 rpm
Max. torque
421 Nm
No. of cylinders
4
Cylinder bore x stroke
105 x 125 mm
Emission level
Tier 2

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 160 LX FAQ

When was the Link-Belt 160 LX manufactured?

The Link-Belt 160 LX was manufactured from 2003 to 2012.

How much does the Link-Belt 160 LX weigh?

The Link-Belt 160 LX weighs 16 tons.

What are the transport dimensions of the Link-Belt 160 LX crawler excavator?

The Link-Belt 160 LX has a transport length of 8 meters, a transport width of 2 meters, and a transport height of 3 meters.

What are the undercarriage specifications of the Link-Belt 160 LX?

The Link-Belt 160 LX has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the Link-Belt 160 LX?

The Link-Belt 160 LX has a dredging depth of 6.45 meters, a maximum horizontal reach of 9.48 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Link-Belt 160 LX?

The Link-Belt 160 LX has a tear-out force of 112 kN. No power rating data is available.

What is the bucket width of the Link-Belt 160 LX excavator?

The bucket width of the Link-Belt 160 LX excavator is 1.676 meters.

How much is a Link-Belt 160 LX Crawler excavator (2003u20132012) worth?

The residual value of the Link-Belt 160 LX depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
