R 9800 G6 Liebherr excavator specs & Dimensions (2023 - 2026)

Weight: 810t – Transport length: 23.91m – Transport width: 10.55m – Transport height: 11.065m – Bucket capacity: 47.5m³ – Bucket c…

Weight: 810t – Transport length: 23.91m – Transport width: 10.55m – Transport height: 11.065m – Bucket capacity: 47.5m³ – Bucket capacity min.: 42m³

Check out detailed specifications, information and technical data for Liebherr R 9800 G6 excavator manufactured between 2023 - 2026. Get more in-depth insight with Liebherr R 9800 G6 digger specifications. See information, like: Weight: 810t – Transport length: 23.91m – Transport width: 10.55m – Transport height: 11.065m – Bucket capacity: 47.5m³ – Bucket capacity min.: 42m³ and more.

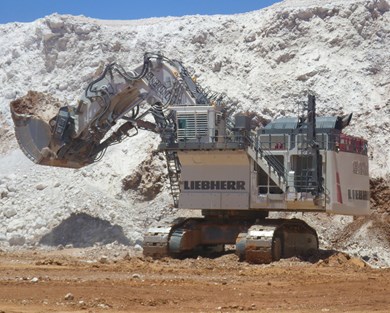

Crawler Excavators Liebherr R 9800 G6

Visit Liebherr live at

Technical specs - R 9800 G6 Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
810 t
Transport length
23.91 m
Transport width
10.55 m
Transport height
11.065 m
Bucket capacity
47.5 m³
Bucket capacity min.
42 m³
Bucket capacity max.
47.5 m³
Track width
1630 mm
Max. Reach horizontal
21.2 m
Dredging depth
9 m
Tear-out force
3090 kN
Bucket width
3 m
Model series
R
Engine manuf.
Cummins
Engine type
QSK 60
Engine power
2984 kW
Displacement
60 l
Revolutions at max torque
1800 rpm
Cylinder bore x stroke
159x190 mm
Emission level
Stage V

More technical details, like: undercarriage, boom, dimension lxwxh, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 9800 G6 FAQ

When was the Liebherr R 9800 G6 manufactured?

The Liebherr R 9800 G6 was first produced in 2023.

How much does the Liebherr R 9800 G6 weigh?

The Liebherr R 9800 G6 weighs 810 tons.

What are the transport dimensions of the Liebherr R 9800 G6?

The Liebherr R 9800 G6 has a transport length of 23.91 meters, a transport width of 10.55 meters, and a transport height of 11.07 meters.

What is the track width of the Liebherr R 9800 G6 crawler excavator?

The Liebherr R 9800 G6 crawler excavator has a track width of 1630 mm.

What are the excavation performance specifications of the Liebherr R 9800 G6?

The Liebherr R 9800 G6 has a dredging depth of 9 meters and a maximum horizontal reach of 21.2 meters.

What is the tear-out force of the Liebherr R 9800 G6?

The Liebherr R 9800 G6 has a tear-out force of 3090 kN.

What are the bucket specifications of the Liebherr R 9800 G6 crawler excavator?

The Liebherr R 9800 G6 has a bucket capacity ranging from 42 to 47.5 cubic meters, with a bucket width of 3 meters.

How much is a Liebherr R 9800 G6 Crawler excavator (2023u20132025) worth?

The residual value of the Liebherr R 9800 G6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
