R 976 Litronic Liebherr excavator specs & Dimensions (2019 - 2021)

Liebherr R 976 Litronic is a crawler excavator manufactured from 2019 to 2021. It has a weight of 86.5 tons and a track width of 5…

Liebherr R 976 Litronic is a crawler excavator manufactured from 2019 to 2021. It has a weight of 86.5 tons and a track width of 500 mm. The transport dimensions are 13.8 meters in length, 4.54 meters in width, and 5.1 meters in height. The machine features a tear-out force of 284 kN, a dredging depth of 9.25 meters, and a maximum horizontal reach of 14.05 meters. It is equipped with a bucket capacity of 6.6 cubic meters and includes special equipment such as air conditioning and a blade.

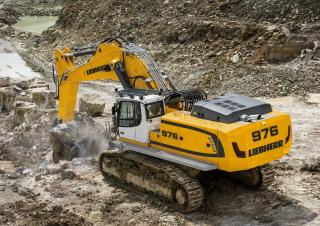

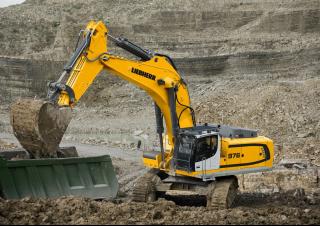

Crawler Excavators Liebherr R 976 Litronic
Crawler Excavators Liebherr R 976 Litronic
Crawler Excavators Liebherr R 976 Litronic
Crawler Excavators Liebherr R 976 Litronic
Crawler Excavators Liebherr R 976 Litronic
Crawler Excavators Liebherr R 976 Litronic
Crawler Excavators Liebherr R 976 Litronic
Crawler Excavators Liebherr R 976 Litronic

Visit Liebherr live at

Technical specs - R 976 Litronic Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
86.5 t
Transport length
13.8 m
Transport width
4.54 m
Transport height
5.1 m
Bucket capacity
6.6 m³
Undercarriage
HD/LCV
Track width
500 mm
Boom
MB
Max. Reach horizontal
14.05 m
Dredging depth
9.25 m
Tear-out force
284 kN
Model series
R
Engine manuf.
Liebherr
Engine type
D9508 A7 SCR
Engine power
400 kW
Displacement
16.16 l
Revolutions at max torque
1800 rpm
No. of cylinders
8
Cylinder bore x stroke
128x157 mm
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 976 Litronic FAQ

When was the Liebherr R 976 Litronic manufactured?

The Liebherr R 976 Litronic was manufactured from 2019 to 2021.

How much does the Liebherr R 976 Litronic weigh?

The Liebherr R 976 Litronic weighs 86.5 tons.

What are the transport dimensions of the Liebherr R 976 Litronic crawler excavator?

The Liebherr R 976 Litronic has a transport length of 13.8 meters, a transport width of 4.54 meters, and a transport height of 5.1 meters.

What are the undercarriage specifications of the Liebherr R 976 Litronic?

The Liebherr R 976 Litronic has a heavy duty, long undercarriage that is hydraulically extendable, with a track width of 500 mm.

What are the excavation performance specifications of the Liebherr R 976 Litronic?

The Liebherr R 976 Litronic has a dredging depth of 9.25 meters, a maximum horizontal reach of 14.05 meters, and features a monobloc boom.

What is the tear-out force of the Liebherr R 976 Litronic?

The Liebherr R 976 Litronic has a tear-out force of 284 kN.

What is the bucket capacity of the Liebherr R 976 Litronic excavator?

The bucket capacity of the Liebherr R 976 Litronic is 6.6 cubic meters.

How much is a Liebherr R 976 Litronic Crawler excavator (2019u20132021) worth?

The residual value of the Liebherr R 976 Litronic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
