R 966 Litronic Liebherr excavator specs & Dimensions (2019 - 2024)

Liebherr R 966 Litronic is a Crawler Excavator manufactured since 2019, with a weight of 68.45 tons. It features a track width of …

Liebherr R 966 Litronic is a Crawler Excavator manufactured since 2019, with a weight of 68.45 tons. It features a track width of 400 mm, a transport length of 12.85 meters, a transport width of 4.495 meters, and a transport height of 3.9 meters. The machine has a tear-out force of 354 kN, a dredging depth of 8.75 meters, and a maximum horizontal reach of 13.1 meters. The bucket capacity is 5.5 cubic meters. Special equipment includes air conditioning, material handling capabilities, and an overload alert system.

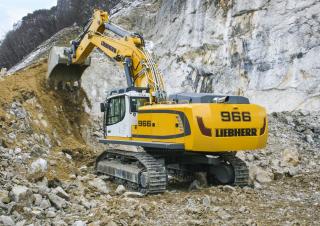

Crawler Excavators Liebherr R 966 Litronic
Crawler Excavators Liebherr R 966 Litronic
Crawler Excavators Liebherr R 966 Litronic
Crawler Excavators Liebherr R 966 Litronic
Crawler Excavators Liebherr R 966 Litronic
Crawler Excavators Liebherr R 966 Litronic
Crawler Excavators Liebherr R 966 Litronic
Crawler Excavators Liebherr R 966 Litronic

Visit Liebherr live at

Technical specs - R 966 Litronic Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
68.45 t
Transport length
12.85 m
Transport width
4.495 m
Transport height
3.9 m
Bucket capacity
5.5 m³
Undercarriage
HD/LCV
Track width
400 mm
Max. Reach horizontal
13.1 m
Dredging depth
8.75 m
Tear-out force
354 kN
Model series
R
Engine manuf.
Liebherr
Engine type
D9508 A7 SCR
Engine power
320 kW
Displacement
16.16 l
Revolutions at max torque
1800 rpm
No. of cylinders
8
Cylinder bore x stroke
128x157 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., boom, bucket width, dimension lxwxh, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 966 Litronic FAQ

When was the Liebherr R 966 Litronic manufactured?

The Liebherr R 966 Litronic was first produced in 2019.

How much does the Liebherr R 966 Litronic weigh?

The Liebherr R 966 Litronic weighs 68.45 tons.

What are the transport dimensions of the Liebherr R 966 Litronic?

The Liebherr R 966 Litronic has a transport length of 12.85 meters, a transport width of 4.5 meters, and a transport height of 3.9 meters.

What are the undercarriage specifications of the Liebherr R 966 Litronic?

The Liebherr R 966 Litronic has a heavy duty, long undercarriage that is hydraulically extendable, with a track width of 400 mm.

What are the excavation performance specifications of the Liebherr R 966 Litronic?

The Liebherr R 966 Litronic has a dredging depth of 8.75 meters and a maximum horizontal reach of 13.1 meters.

What is the tear-out force of the Liebherr R 966 Litronic?

The Liebherr R 966 Litronic has a tear-out force of 354 kN.

What is the bucket capacity of the Liebherr R 966 Litronic excavator?

The Liebherr R 966 Litronic has a bucket capacity of 5.5 cubic meters.

How much is a Liebherr R 966 Litronic Crawler excavator (2019u20132025) worth?

The residual value of the Liebherr R 966 Litronic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
