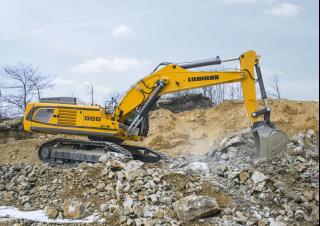

R 966 Liebherr excavator specs & Dimensions (2016 - 2019)

Liebherr R 966 is a Crawler Excavator manufactured from 2016 to 2019. It has a weight of 69.25 tons and a track width of 600 mm. T…

Liebherr R 966 is a Crawler Excavator manufactured from 2016 to 2019. It has a weight of 69.25 tons and a track width of 600 mm. The transport dimensions are 12.85 meters in length, 3.3 meters in width, and 3.53 meters in height. The machine features a tear-out force of 308 kN, a dredging depth of 7.15 meters, and a maximum horizontal reach of 11.6 meters. The bucket width is 2.15 meters with a capacity of 4 cubic meters.

Crawler Excavators Liebherr R 966

Visit Liebherr live at

Technical specs - R 966 Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
69.25 t
Transport length
12.85 m
Transport width
3.3 m
Transport height
3.53 m
Bucket capacity
4 m³
Undercarriage
HD
Track width
600 mm
Boom
MB
Max. Reach horizontal
11.6 m
Dredging depth
7.15 m
Tear-out force
308 kN
Bucket width
2.15 m
Model series
R
Engine manuf.
Liebherr
Engine type
D 9508 A7 SCR
Engine power
320 kW
Displacement
16.16 l
Revolutions at max torque
1100 rpm
Max. torque
2750 Nm
No. of cylinders
8
Cylinder bore x stroke
128x157 mm
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Buy full specs

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 966 FAQ

When was the Liebherr R 966 manufactured?

The Liebherr R 966 was manufactured from 2016 to 2019.

How much does the Liebherr R 966 weigh?

The Liebherr R 966 weighs 69.25 tons.

What are the transport dimensions of the Liebherr R 966 crawler excavator?

The Liebherr R 966 crawler excavator has a transport length of 12.85 meters, a transport width of 3.3 meters, and a transport height of 3.53 meters.

What are the undercarriage specifications of the Liebherr R 966 crawler excavator?

The Liebherr R 966 crawler excavator has a heavy duty undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Liebherr R 966?

The Liebherr R 966 has a dredging depth of 7.15 meters, a maximum horizontal reach of 11.6 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Liebherr R 966?

The Liebherr R 966 has a tear-out force of 308 kN. No power rating data is available for this model.

What are the specifications of the primary work tool on the Liebherr R 966?

The primary work tool of the Liebherr R 966 has a bucket capacity of 4 cubic meters and a bucket width of 2.15 meters.

How much is a Liebherr R 966 Crawler excavator (2016u20132019) worth?

The residual value of the Liebherr R 966 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
