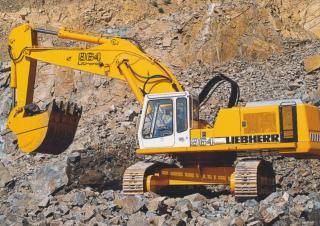

R 964 Liebherr excavator specs & Dimensions (1994 - 2020)

Liebherr R964 is a Crawler Excavator manufactured since 1994, with a weight of 62.2 tons. It features a track width of 600 mm, a t…

Liebherr R964 is a Crawler Excavator manufactured since 1994, with a weight of 62.2 tons. It features a track width of 600 mm, a transport length of 10.22 meters, a transport width of 3.8 meters, and a transport height of 3.637 meters. The machine has a tear-out force of 250 kN, a dredging depth of 8 meters, and a maximum horizontal reach of 12.2 meters. The bucket width is 2.45 meters, and the bucket capacity is 5 cubic meters.

Crawler Excavators Liebherr R 964

Visit Liebherr live at

Technical specs - R 964 Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
62.2 t
Transport length
10.22 m
Transport width
3.8 m
Transport height
3.637 m
Bucket capacity
5 m³
Track width
600 mm
Max. Reach horizontal
12.2 m
Dredging depth
8 m
Tear-out force
250 kN
Bucket width
2.45 m
Engine manuf.
Liebherr
Engine type
D 9308T
Engine power
268 kW
Displacement
16 l
Revolutions at max torque
2100 rpm
No. of cylinders
8
Cylinder bore x stroke
130x150 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, model series, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 964 FAQ

When was the Liebherr R964 manufactured?

The Liebherr R964 was first produced in 1994.

How much does the Liebherr R964 weigh?

The Liebherr R964 weighs 62.2 tons.

What are the transport dimensions of the Liebherr R964 crawler excavator?

The Liebherr R964 crawler excavator has a transport length of 10.22 meters, a transport width of 3.8 meters, and a transport height of 3.64 meters.

What is the track width of the Liebherr R964's undercarriage?

The Liebherr R964 has a track width of 600 mm.

What are the excavation performance specifications of the Liebherr R964?

The Liebherr R964 has a dredging depth of 8 meters and a maximum horizontal reach of 12.2 meters.

What is the tear-out force of the Liebherr R964?

The Liebherr R964 has a tear-out force of 250 kN.

What are the specifications of the primary work tool bucket on the Liebherr R964?

The primary work tool bucket of the Liebherr R964 has a capacity of 5 cubic meters and a width of 2.45 meters.

How much is a Liebherr R964 Crawler excavator (1994u20132025) worth?

The residual value of the Liebherr R964 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
