R 9400 G6 Liebherr excavator specs & Dimensions (2023 - 2026)

Weight: 353t – Transport length: 18.63m – Transport width: 8.52m – Transport height: 9.25m – Bucket capacity: 24m³ – Bucket capaci…

Weight: 353t – Transport length: 18.63m – Transport width: 8.52m – Transport height: 9.25m – Bucket capacity: 24m³ – Bucket capacity min.: 22m³

Check out detailed specifications, information and technical data for Liebherr R 9400 G6 excavator manufactured between 2023 - 2026. Get more in-depth insight with Liebherr R 9400 G6 digger specifications. See information, like: Weight: 353t – Transport length: 18.63m – Transport width: 8.52m – Transport height: 9.25m – Bucket capacity: 24m³ – Bucket capacity min.: 22m³ and more.

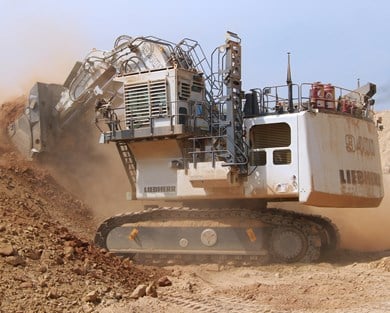

Crawler Excavators Liebherr R 9400 G6

Visit Liebherr live at

Technical specs - R 9400 G6 Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
353 t
Transport length
18.63 m
Transport width
8.52 m
Transport height
9.25 m
Bucket capacity
24 m³
Bucket capacity min.
22 m³
Bucket capacity max.
24 m³
Track width
1000 mm
Max. Reach horizontal
17 m
Dredging depth
9.1 m
Tear-out force
1545 kN
Bucket width
2.5 m
Model series
R
Engine manuf.
Cummins
Engine type
QSK50
Engine power
1250 kW
Displacement
50.3 l
Revolutions at max torque
1800 rpm
Cylinder bore x stroke
159x159 mm
Emission level
Stage V

More technical details, like: undercarriage, boom, dimension lxwxh, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 9400 G6 FAQ

When was the Liebherr R 9400 G6 manufactured?

The Liebherr R 9400 G6 was first produced in 2023.

How much does the Liebherr R 9400 G6 weigh?

The Liebherr R 9400 G6 weighs 353 tons.

What are the transport dimensions of the Liebherr R 9400 G6 crawler excavator?

The Liebherr R 9400 G6 has a transport length of 18.63 meters, a transport width of 8.52 meters, and a transport height of 9.25 meters.

What is the track width of the Liebherr R 9400 G6's undercarriage?

The Liebherr R 9400 G6 has a track width of 1000 mm.

What are the excavation performance specifications of the Liebherr R 9400 G6?

The Liebherr R 9400 G6 has a dredging depth of 9.1 meters and a maximum horizontal reach of 17 meters.

What is the tear-out force of the Liebherr R 9400 G6, given that no power ratings are provided?

The Liebherr R 9400 G6 does not have power ratings listed in the available data; however, it has a tear-out force of 1545 kN.

What are the specifications of the primary work tool bucket on the Liebherr R 9400 G6?

The Liebherr R 9400 G6 has a bucket capacity ranging from 22 to 24 cubic meters, with a maximum capacity of 24 cubic meters and a bucket width of 2.5 meters.

How much is a Liebherr R 9400 G6 Crawler excavator (2023u20132025) worth?

The residual value of the Liebherr R 9400 G6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
