R 9350 Liebherr excavator specs & Dimensions (2007 - 2020)

Model rating
8,00 / 10

Liebherr R 9350 is a crawler excavator manufactured since 2007, with a weight of 302 tons and a track width of 850 mm. It has a te…

Liebherr R 9350 is a crawler excavator manufactured since 2007, with a weight of 302 tons and a track width of 850 mm. It has a tear-out force of 880 kN and a bucket capacity of 18 m³. The excavator is equipped with air conditioning.

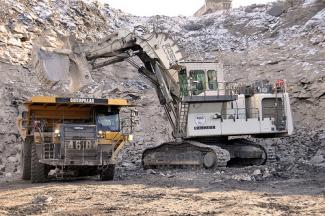

Crawler Excavators Liebherr R 9350
Crawler Excavators Liebherr R 9350
Crawler Excavators Liebherr R 9350
Crawler Excavators Liebherr R 9350
Crawler Excavators Liebherr R 9350
Crawler Excavators Liebherr R 9350
Crawler Excavators Liebherr R 9350
Crawler Excavators Liebherr R 9350

Visit Liebherr live at

Technical specs - R 9350 Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
302 t
Bucket capacity
18 m³
Track width
850 mm
Boom
MB
Max. Reach horizontal
16.3 m
Dredging depth
9.5 m
Tear-out force
880 kN
Model series
R
Engine manuf.
Cummins
Engine type
QSK45
Engine power
1120 kW
Displacement
45 l
Revolutions at max torque
1800 rpm

More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 9350 FAQ

When was the Liebherr R 9350 manufactured?

The Liebherr R 9350 was first produced in 2007.

How much does the Liebherr R 9350 weigh?

The Liebherr R 9350 weighs 302 tons.

What is the track width of the Liebherr R 9350's undercarriage?

The Liebherr R 9350 has a track width of 850 mm.

What are the excavation performance specifications of the Liebherr R 9350?

The Liebherr R 9350 has a dredging depth of 9.5 meters, a maximum horizontal reach of 16.3 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Liebherr R 9350?

The Liebherr R 9350 has a tear-out force of 880 kN.

What is the bucket capacity of the Liebherr R 9350 excavator?

The bucket capacity of the Liebherr R 9350 is 18 cubic meters.

How much is a Liebherr R 9350 Crawler excavator (2007u20132025) worth?

The residual value of the Liebherr R 9350 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
