R 9250 G6 Liebherr excavator specs & Dimensions (2023 - 2026)

Weight: 253t – Transport length: 17.9m – Transport width: 8.145m – Transport height: 7.8m – Bucket capacity: 15.7m³ – Bucket capac…

Weight: 253t – Transport length: 17.9m – Transport width: 8.145m – Transport height: 7.8m – Bucket capacity: 15.7m³ – Bucket capacity min.: 15m³

Check out detailed specifications, information and technical data for Liebherr R 9250 G6 excavator manufactured between 2023 - 2026. Get more in-depth insight with Liebherr R 9250 G6 digger specifications. See information, like: Weight: 253t – Transport length: 17.9m – Transport width: 8.145m – Transport height: 7.8m – Bucket capacity: 15.7m³ – Bucket capacity min.: 15m³ and more.

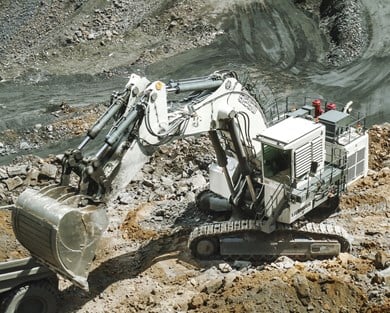

Crawler Excavators Liebherr R 9250 G6

Visit Liebherr live at

Technical specs - R 9250 G6 Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
253 t
Transport length
17.9 m
Transport width
8.145 m
Transport height
7.8 m
Bucket capacity
15.7 m³
Bucket capacity min.
15 m³
Bucket capacity max.
15.7 m³
Track width
850 mm
Max. Reach horizontal
16 m
Dredging depth
8.7 m
Tear-out force
1260 kN
Bucket width
2.7 m
Model series
R
Engine manuf.
Cummins
Engine type
QSK45
Engine power
960 kW
Displacement
45 l
Revolutions at max torque
1800 rpm
Cylinder bore x stroke
159x190 mm
Emission level
Tier 1

More technical details, like: undercarriage, boom, dimension lxwxh, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 9250 G6 FAQ

When was the Liebherr R 9250 G6 manufactured?

The Liebherr R 9250 G6 was first produced in 2023.

How much does the Liebherr R 9250 G6 weigh?

The Liebherr R 9250 G6 weighs 253 tons.

What are the transport dimensions of the Liebherr R 9250 G6 crawler excavator?

The Liebherr R 9250 G6 has a transport length of 17.9 meters, a transport width of 8.15 meters, and a transport height of 7.8 meters.

What is the track width of the Liebherr R 9250 G6's undercarriage?

The Liebherr R 9250 G6 has a track width of 850 mm.

What is the excavation performance of the Liebherr R 9250 G6?

The Liebherr R 9250 G6 has a dredging depth of 8.7 meters and a maximum horizontal reach of 16 meters.

What is the tear-out force of the Liebherr R 9250 G6?

The Liebherr R 9250 G6 has a tear-out force of 1260 kN.

What are the specifications of the bucket on the Liebherr R 9250 G6 crawler excavator?

The Liebherr R 9250 G6 has a bucket with a capacity ranging from 15 to 15.7 cubic meters and a width of 2.7 meters.

How much is a Liebherr R 9250 G6 Crawler excavator (2023u20132025) worth?

The residual value of the Liebherr R 9250 G6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
