KX080-3α 2PC Kubota excavator specs & Dimensions (2008 - 2015)

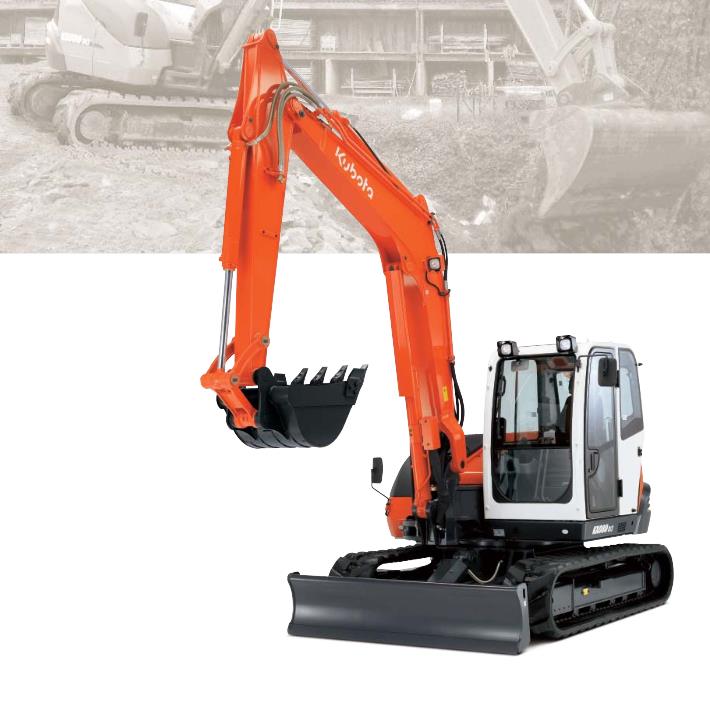

Kubota KX080-3α 2PC is a Crawler Excavator manufactured from 2008 to 2015, with a weight of 8.7 tons. It features a track width of…

Kubota KX080-3α 2PC is a Crawler Excavator manufactured from 2008 to 2015, with a weight of 8.7 tons. It features a track width of 450 mm, a transport length of 6.93 meters, a transport width of 2.2 meters, and a transport height of 2.54 meters. The excavator has a tear-out force of 65.2 kN and comes equipped with air conditioning, a blade, and an overload alert system.

Crawler Excavators Kubota KX080-3α 2PC

Technical specs - KX080-3α 2PC Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.7 t
Transport length
6.93 m
Transport width
2.2 m
Transport height
2.54 m
Bucket capacity
0.25 m³
Track width
450 mm
Boom
VA
Max. Reach horizontal
7.82 m
Dredging depth
4.59 m
Tear-out force
65.2 kN
Bucket width
0.8 m
Model series
KX
Engine manuf.
Kubota
Engine type
V3307DI-T
Engine power
47.8 kW
Displacement
3.331 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kubota KX080-3α 2PC FAQ

When was the Kubota KX080-3u03b1 2PC manufactured?

The Kubota KX080-3u03b1 2PC was manufactured from 2008 to 2015.

How much does the Kubota KX080-3u03b1 2PC weigh?

The Kubota KX080-3u03b1 2PC weighs 8.7 tons.

What are the transport dimensions of the Kubota KX080-3u03b1 2PC crawler excavator?

The Kubota KX080-3u03b1 2PC has a transport length of 6.93 meters, a transport width of 2.2 meters, and a transport height of 2.54 meters.

What is the track width of the Kubota KX080-3u03b1 2PC's undercarriage?

The Kubota KX080-3u03b1 2PC has a track width of 450 mm.

What are the excavation performance specifications of the Kubota KX080-3u03b1 2PC?

The Kubota KX080-3u03b1 2PC has a dredging depth of 4.59 meters, a maximum horizontal reach of 7.82 meters, and features an adjustable boom.

What are the power ratings of the Kubota KX080-3u03b1 2PC?

The source data does not provide power ratings for the Kubota KX080-3u03b1 2PC.

What are the bucket specifications of the Kubota KX080-3u03b1 2PC crawler excavator?

The Kubota KX080-3u03b1 2PC has a bucket capacity of 0.25 cubic meters and a bucket width of 0.8 meters.

How much is a Kubota KX080-3u03b1 2PC Crawler excavator (2008u20132015) worth?

The residual value of the Kubota KX080-3u03b1 2PC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
