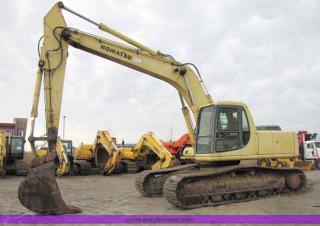

PC250LC-6 Komatsu excavator specs & Dimensions (1994 - 2001)

Komatsu PC250LC-6 is a crawler excavator manufactured from 1994 to 2001. It has a weight of 27.5 tons and a track width of 700 mm.…

Komatsu PC250LC-6 is a crawler excavator manufactured from 1994 to 2001. It has a weight of 27.5 tons and a track width of 700 mm. The transport dimensions are 9.77 meters in length, 3.29 meters in width, and 3.02 meters in height. The dredging depth is 7.105 meters, with a maximum horizontal reach of 10.385 meters. The bucket width is 1.219 meters, and the bucket capacity is 1.53 cubic meters.

Crawler Excavators Komatsu PC250LC-6

Visit Komatsu live at

Technical specs - PC250LC-6 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
27.5 t
Transport length
9.77 m
Transport width
3.29 m
Transport height
3.02 m
Bucket capacity
1.53 m³
Undercarriage
LC
Track width
700 mm
Boom
MB
Max. Reach horizontal
10.385 m
Dredging depth
7.105 m
Bucket width
1.219 m
Model series
PC
Engine manuf.
Komatsu
Engine type
SA6D95L
Engine power
118 kW
Displacement
4.89 l
Revolutions at max torque
2300 rpm
No. of cylinders
6
Cylinder bore x stroke
95x115 mm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC250LC-6 FAQ

When was the Komatsu PC250LC-6 manufactured?

The Komatsu PC250LC-6 was manufactured from 1994 to 2001.

How much does the Komatsu PC250LC-6 weigh?

The Komatsu PC250LC-6 weighs 27.5 tons.

What are the transport dimensions of the Komatsu PC250LC-6?

The Komatsu PC250LC-6 has a transport length of 9.77 meters, a transport width of 3.29 meters, and a transport height of 3.02 meters.

What are the undercarriage specifications of the Komatsu PC250LC-6?

The Komatsu PC250LC-6 has a long undercarriage with a track width of 700 mm.

What are the excavation performance specifications of the Komatsu PC250LC-6?

The Komatsu PC250LC-6 has a dredging depth of 7.105 meters, a maximum horizontal reach of 10.385 meters, and features a monobloc boom.

What are the specifications of the primary work tool bucket on the Komatsu PC250LC-6?

The primary work tool bucket of the Komatsu PC250LC-6 has a capacity of 1.53 cubic meters and a width of 1.219 meters.

How much is a Komatsu PC250LC-6 Crawler excavator (1994u20132001) worth?

The residual value of the Komatsu PC250LC-6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Komatsu PC250LC-6 overview

Hydraulic and electronic system

HydrauMind

Avance is the next generation of excavator development from Komatsu. This machine provides the most productive and economical excavator on the market today. HydrauMind is a closed center hydraulic system designed with four Komatsu exclusive valves, which furnishes the Avance operator with greater control and greater responsiveness. Operations are smoother because the LS Bypass Valve reduces hydraulic surge pressures. Cycle times and fuel efficiency have been increased with the use of the Pump Merge and Idle Valve. The LS Select Valve is used to match the pump merge divide valve operations to reduce fuel shock and maintain greater swing speeds. Finally, the LS EPC Valve has been added to make swing speed proportional to engine rpm, thereby increasing the overall efficiency of the machine. With the HydrauMind hydraulic system, an Avance operator experiences less fatigue and greater control, because the work equipment responds directly to the controllers.


Add on Service Valves

As your needs expand, so can your Avance excavator. With the HydrauMind system, up to three service valves can be quickly and easily added to the main valve body. This allows the Avance excavator to adapt to all your future demands.
