PC240LC-7SLF Komatsu excavator specs & Dimensions (2002 - 2005)

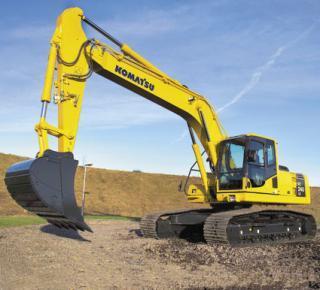

Komatsu PC240LC-7SLF is a crawler excavator manufactured from 2002 to 2005, with a weight of 27.12 tons. It features a track width…

Komatsu PC240LC-7SLF is a crawler excavator manufactured from 2002 to 2005, with a weight of 27.12 tons. It features a track width of 600 mm, a transport length of 14.4 meters, a transport width of 3.18 meters, and a transport height of 3.23 meters. The excavator is equipped with air conditioning and an overload alert system.

Crawler Excavators Komatsu PC240LC-7SLF

Visit Komatsu live at

Technical specs - PC240LC-7SLF Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
27.12 t
Transport length
14.4 m
Transport width
3.18 m
Transport height
3.23 m
Bucket capacity
0.47 m³
Undercarriage
LC
Track width
600 mm
Max. Reach horizontal
18.3 m
Dredging depth
14.58 m
Bucket width
0.75 m
Model series
PC
Engine manuf.
Komatsu
Engine type
SAA6D102E-2
Engine power
125 kW
Displacement
5.88 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., boom, tear-out force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Komatsu PC240LC-7SLF FAQ

When was the Komatsu PC240LC-7SLF manufactured?

The Komatsu PC240LC-7SLF was manufactured from 2002 to 2005.

How much does the Komatsu PC240LC-7SLF weigh?

The Komatsu PC240LC-7SLF weighs 27.12 tons.

What are the transport dimensions of the Komatsu PC240LC-7SLF?

The Komatsu PC240LC-7SLF has a transport length of 14.4 meters, a transport width of 3.18 meters, and a transport height of 3.23 meters.

What are the undercarriage specifications of the Komatsu PC240LC-7SLF?

The Komatsu PC240LC-7SLF has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Komatsu PC240LC-7SLF?

The Komatsu PC240LC-7SLF has a dredging depth of 14.58 meters and a maximum horizontal reach of 18.3 meters.

What are the bucket specifications of the Komatsu PC240LC-7SLF excavator?

The Komatsu PC240LC-7SLF has a bucket capacity of 0.47 cubic meters and a bucket width of 0.75 meters.

How much is a Komatsu PC240LC-7SLF Crawler excavator (2002u20132005) worth?

The residual value of the Komatsu PC240LC-7SLF depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
