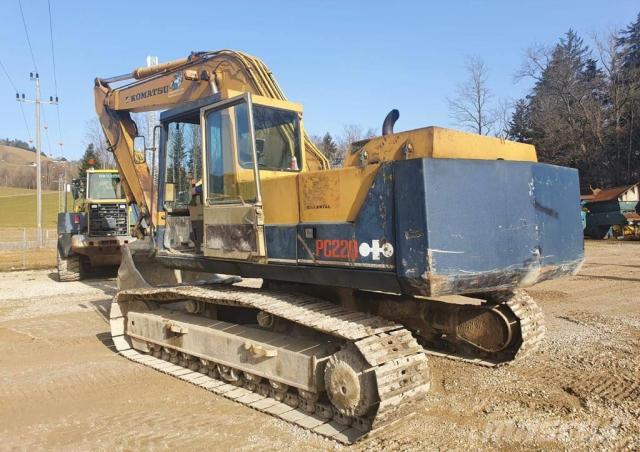

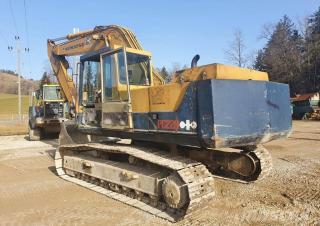

PC220-3 Komatsu excavator specs & Dimensions (1986 - 1993)

Komatsu PC220-3 is a crawler excavator manufactured from 1986 to 1993. It has a weight of 22.3 tons and a track width of 710 mm. T…

Komatsu PC220-3 is a crawler excavator manufactured from 1986 to 1993. It has a weight of 22.3 tons and a track width of 710 mm. The transport dimensions are 10 meters in length, 3.29 meters in width, and 2.875 meters in height. The dredging depth is 7.16 meters, with a maximum horizontal reach of 10.46 meters. The bucket width is 1.4 meters, and the bucket capacity is 1.2 cubic meters.

Crawler Excavators Komatsu PC220-3

Visit Komatsu live at

Technical specs - PC220-3 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.3 t
Transport length
10 m
Transport width
3.29 m
Transport height
2.875 m
Bucket capacity
1.2 m³
Undercarriage
SL
Track width
710 mm
Boom
MB
Max. Reach horizontal
10.46 m
Dredging depth
7.16 m
Bucket width
1.4 m
Model series
PC
Engine manuf.
Komatsu
Engine type
S6D105
Engine power
148 HP
Displacement
6.49 l
Revolutions at max torque
2100 rpm
No. of cylinders
6
Cylinder bore x stroke
105x125 mm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC220-3 FAQ

When was the Komatsu PC220-3 manufactured?

The Komatsu PC220-3 was manufactured from 1986 to 1993.

How much does the Komatsu PC220-3 weigh?

The Komatsu PC220-3 weighs 22.3 tons.

What are the transport dimensions of the Komatsu PC220-3?

The Komatsu PC220-3 has a transport length of 10 meters, a transport width of 3.29 meters, and a transport height of 2.88 meters.

What are the undercarriage specifications of the Komatsu PC220-3?

The Komatsu PC220-3 has a standard undercarriage with a track width of 710 mm.

What are the excavation performance specifications of the Komatsu PC220-3?

The Komatsu PC220-3 has a dredging depth of 7.16 meters, a maximum horizontal reach of 10.46 meters, and features a Monobloc boom.

What are the specifications of the primary work tool bucket on the Komatsu PC220-3?

The primary work tool bucket of the Komatsu PC220-3 has a capacity of 1.2 cubic meters and a width of 1.4 meters.

How much is a Komatsu PC220-3 Crawler excavator (1986u20131993) worth?

The residual value of the Komatsu PC220-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
