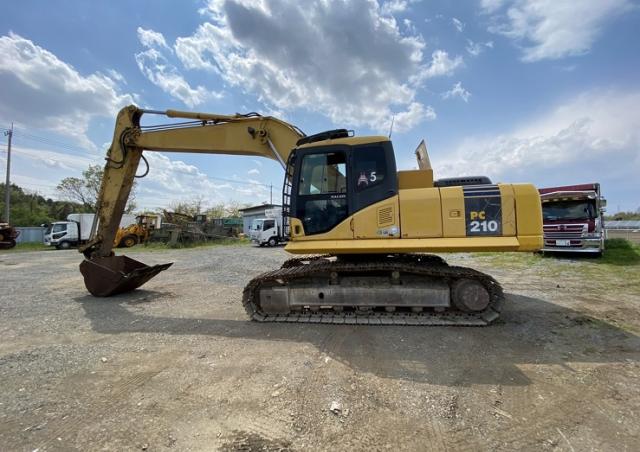

PC210-7 Komatsu excavator specs & Dimensions (2002 - 2009)

Komatsu PC210-7 is a Crawler Excavator manufactured from 2002 to 2009. It has a weight of 21.5 tons and a track width of 500 mm. T…

Komatsu PC210-7 is a Crawler Excavator manufactured from 2002 to 2009. It has a weight of 21.5 tons and a track width of 500 mm. The transport dimensions are 9.54 meters in length, 2.7 meters in width, and 3.015 meters in height. The dredging depth is 6.62 meters, with a maximum horizontal reach of 9.7 meters. The bucket width is 1.8 meters, and the bucket capacity is 1.68 cubic meters.

Crawler Excavators Komatsu PC210-7

Visit Komatsu live at

Technical specs - PC210-7 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.5 t
Transport length
9.54 m
Transport width
2.7 m
Transport height
3.015 m
Bucket capacity
1.68 m³
Undercarriage
SL
Track width
500 mm
Boom
MB
Max. Reach horizontal
9.7 m
Dredging depth
6.62 m
Bucket width
1.8 m
Model series
PC
Engine manuf.
Komatsu
Engine type
SAA6D102E-2
Engine power
107 kW
Displacement
5.88 l
Revolutions at max torque
1950 rpm
No. of cylinders
6
Cylinder bore x stroke
102x120 mm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC210-7 FAQ

When was the Komatsu PC210-7 manufactured?

The Komatsu PC210-7 was manufactured from 2002 to 2009.

How much does the Komatsu PC210-7 weigh?

The Komatsu PC210-7 weighs 21.5 tons.

What are the transport dimensions of the Komatsu PC210-7?

The Komatsu PC210-7 has a transport length of 9.54 meters, a transport width of 2.7 meters, and a transport height of 3.02 meters.

What are the undercarriage specifications of the Komatsu PC210-7?

The Komatsu PC210-7 has a standard undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the Komatsu PC210-7?

The Komatsu PC210-7 has a dredging depth of 6.62 meters, a maximum horizontal reach of 9.7 meters, and features a monobloc boom.

What are the bucket specifications of the Komatsu PC210-7 excavator?

The Komatsu PC210-7 excavator has a bucket capacity of 1.68 cubic meters and a bucket width of 1.8 meters.

How much is a Komatsu PC210-7 Crawler excavator (2002u20132009) worth?

The residual value of the Komatsu PC210-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
