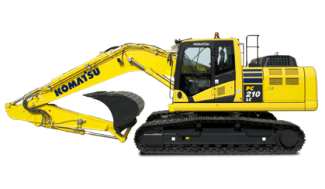

PC210-10 Komatsu excavator specs & Dimensions (2012 - 2017)

Komatsu PC210-10 is a Crawler Excavator manufactured from 2012 to 2017, with a weight of 22.02 tons. It features a track width of …

Komatsu PC210-10 is a Crawler Excavator manufactured from 2012 to 2017, with a weight of 22.02 tons. It features a track width of 600 mm, a transport length of 9.625 meters, a transport width of 2.8 meters, and a transport height of 3.135 meters. The machine has a tear-out force of 149.06 kN, a dredging depth of 11.79 meters, and a maximum horizontal reach of 15.34 meters. It is equipped with a bucket capacity of 1.44 cubic meters and includes special equipment such as a diesel particulate filter and a hydraulic quick hitch.

Crawler Excavators Komatsu PC210-10
Crawler Excavators Komatsu PC210-10
Crawler Excavators Komatsu PC210-10
Crawler Excavators Komatsu PC210-10
Crawler Excavators Komatsu PC210-10
Crawler Excavators Komatsu PC210-10

Visit Komatsu live at

Technical specs - PC210-10 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.02 t
Transport length
9.625 m
Transport width
2.8 m
Transport height
3.135 m
Bucket capacity
1.44 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
15.34 m
Dredging depth
11.79 m
Tear-out force
149.06 kN
Model series
PC
Engine manuf.
Komatsu
Engine type
SAA6D107E-2
Engine power
116 kW
Displacement
6.69 l
Revolutions at max torque
2000 rpm
No. of cylinders
6
Cylinder bore x stroke
107x124 mm
Emission level
IIIA

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC210-10 FAQ

When was the Komatsu PC210-10 manufactured?

The Komatsu PC210-10 was manufactured from 2012 to 2017.

How much does the Komatsu PC210-10 weigh?

The Komatsu PC210-10 weighs 22.02 tons.

What are the transport dimensions of the Komatsu PC210-10?

The Komatsu PC210-10 has a transport length of 9.63 meters, a transport width of 2.8 meters, and a transport height of 3.14 meters.

What is the track width of the Komatsu PC210-10's undercarriage?

The Komatsu PC210-10 has a track width of 600 mm.

What are the excavation performance specifications of the Komatsu PC210-10?

The Komatsu PC210-10 has a dredging depth of 11.79 meters, a maximum horizontal reach of 15.34 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Komatsu PC210-10?

The Komatsu PC210-10 has a tear-out force of 149.06 kN.

What is the bucket capacity of the Komatsu PC210-10?

The bucket capacity of the Komatsu PC210-10 is 1.44 cubic meters.

How much is a Komatsu PC210-10 Crawler excavator (2012u20132017) worth?

The residual value of the Komatsu PC210-10 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
