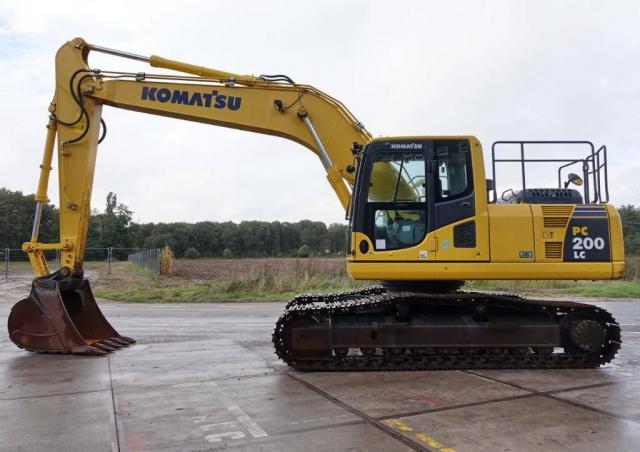

PC200LC-8 Komatsu excavator specs & Dimensions (2005 - 2012)

Komatsu PC200LC-8 is a Crawler Excavator manufactured from 2005 to 2012, with a weight of 21.46 tons. It features a track width of…

Komatsu PC200LC-8 is a Crawler Excavator manufactured from 2005 to 2012, with a weight of 21.46 tons. It features a track width of 700 mm, a transport length of 9.48 meters, a transport width of 3.08 meters, and a transport height of 3.04 meters. The machine has a dredging depth of 6.62 meters and a maximum horizontal reach of 9.7 meters. The bucket width is 1.45 meters, and the bucket capacity is 1.17 cubic meters.

Crawler Excavators Komatsu PC200LC-8

Visit Komatsu live at

Technical specs - PC200LC-8 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.46 t
Transport length
9.48 m
Transport width
3.08 m
Transport height
3.04 m
Bucket capacity
1.17 m³
Undercarriage
LC
Track width
700 mm
Boom
MB
Max. Reach horizontal
9.7 m
Dredging depth
6.62 m
Bucket width
1.45 m
Model series
PC
Engine manuf.
Komatsu
Engine type
SAA6D107E-1
Engine power
116 kW
Displacement
6.69 l
Revolutions at max torque
2000 rpm
No. of cylinders
6
Cylinder bore x stroke
107x124 mm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC200LC-8 FAQ

When was the Komatsu PC200LC-8 manufactured?

The Komatsu PC200LC-8 was manufactured from 2005 to 2012.

How much does the Komatsu PC200LC-8 weigh?

The Komatsu PC200LC-8 weighs 21.46 tons.

What are the transport dimensions of the Komatsu PC200LC-8?

The Komatsu PC200LC-8 has a transport length of 9.48 meters, a transport width of 3.08 meters, and a transport height of 3.04 meters.

What are the undercarriage specifications of the Komatsu PC200LC-8?

The Komatsu PC200LC-8 has a long undercarriage and a track width of 700 mm.

What are the excavation performance specifications of the Komatsu PC200LC-8?

The Komatsu PC200LC-8 has a dredging depth of 6.62 meters, a maximum horizontal reach of 9.7 meters, and is equipped with a monobloc boom.

What are the specifications of the primary work tool on the Komatsu PC200LC-8?

The primary work tool of the Komatsu PC200LC-8 has a bucket capacity of 1.17 cubic meters and a bucket width of 1.45 meters.

How much is a Komatsu PC200LC-8 Crawler excavator (2005u20132012) worth?

The residual value of the Komatsu PC200LC-8 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
