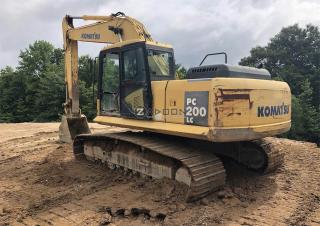

PC200LC-7 Komatsu excavator specs & Dimensions (2002 - 2005)

Komatsu PC200LC-7 is a crawler excavator manufactured from 2002 to 2005. It has a weight of 21.26 tons and a track width of 800 mm…

Komatsu PC200LC-7 is a crawler excavator manufactured from 2002 to 2005. It has a weight of 21.26 tons and a track width of 800 mm. The transport dimensions are 9.495 meters in length, 2.71 meters in width, and 3 meters in height. The dredging depth is 6.62 meters, with a maximum horizontal reach of 9.7 meters. The bucket width is 1.219 meters, and the bucket capacity is 1.17 cubic meters.

Crawler Excavators Komatsu PC200LC-7

Visit Komatsu live at

Technical specs - PC200LC-7 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.26 t
Transport length
9.495 m
Transport width
2.71 m
Transport height
3 m
Bucket capacity
1.17 m³
Undercarriage
LC
Track width
800 mm
Boom
MB
Max. Reach horizontal
9.7 m
Dredging depth
6.62 m
Bucket width
1.219 m
Model series
PC
Engine manuf.
Komatsu
Engine type
SAA6D102E-2
Engine power
111.9 kW
Displacement
5.88 l
Revolutions at max torque
1950 rpm
No. of cylinders
6
Cylinder bore x stroke
102x120 mm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC200LC-7 FAQ

When was the Komatsu PC200LC-7 manufactured?

The Komatsu PC200LC-7 was manufactured from 2002 to 2005.

How much does the Komatsu PC200LC-7 weigh?

The Komatsu PC200LC-7 weighs 21.26 tons.

What are the transport dimensions of the Komatsu PC200LC-7?

The Komatsu PC200LC-7 has a transport length of 9.5 meters, a transport width of 2.71 meters, and a transport height of 3 meters.

What are the undercarriage specifications of the Komatsu PC200LC-7?

The Komatsu PC200LC-7 has a long undercarriage and a track width of 800 mm.

What are the excavation performance specifications of the Komatsu PC200LC-7?

The Komatsu PC200LC-7 has a dredging depth of 6.62 meters, a maximum horizontal reach of 9.7 meters, and features a monobloc boom.

What are the specifications of the primary work tool on the Komatsu PC200LC-7?

The primary work tool of the Komatsu PC200LC-7 has a bucket capacity of 1.17 cubic meters and a bucket width of 1.219 meters.

How much is a Komatsu PC200LC-7 Crawler excavator (2002u20132005) worth?

The residual value of the Komatsu PC200LC-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
