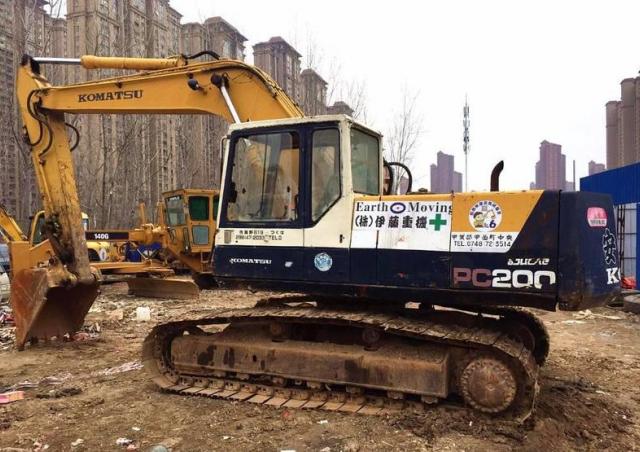

PC200-5 Komatsu excavator specs & Dimensions (1989 - 1996)

Komatsu PC200-5 is a Crawler Excavator manufactured from 1989 to 1996. It has a weight of 19.439 tons and a track width of 600 mm.…

Komatsu PC200-5 is a Crawler Excavator manufactured from 1989 to 1996. It has a weight of 19.439 tons and a track width of 600 mm. The transport dimensions are 9.39 meters in length, 2.78 meters in width, and 2.86 meters in height. The dredging depth is 7.725 meters, with a maximum horizontal reach of 10.705 meters. The bucket width is 1.45 meters, and the bucket capacity is 1.17 cubic meters.

Crawler Excavators Komatsu PC200-5

Visit Komatsu live at

Technical specs - PC200-5 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.439 t
Transport length
9.39 m
Transport width
2.78 m
Transport height
2.86 m
Bucket capacity
1.17 m³
Undercarriage
SL
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.705 m
Dredging depth
7.725 m
Bucket width
1.45 m
Model series
PC
Engine manuf.
Komatsu
Engine type
S6D95L
Engine power
123 HP
Displacement
4.89 l
Revolutions at max torque
2050 rpm
No. of cylinders
6
Cylinder bore x stroke
95x115 mm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC200-5 FAQ

When was the Komatsu PC200-5 manufactured?

The Komatsu PC200-5 was manufactured from 1989 to 1996.

How much does the Komatsu PC200-5 weigh?

The Komatsu PC200-5 weighs 19.44 tons.

What are the transport dimensions of the Komatsu PC200-5?

The Komatsu PC200-5 has a transport length of 9.39 meters, a transport width of 2.78 meters, and a transport height of 2.86 meters.

What are the undercarriage specifications of the Komatsu PC200-5?

The Komatsu PC200-5 has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Komatsu PC200-5?

The Komatsu PC200-5 has a dredging depth of 7.725 meters, a maximum horizontal reach of 10.705 meters, and features a monobloc boom.

What are the specifications of the primary work tool bucket on the Komatsu PC200-5?

The Komatsu PC200-5 has a bucket with a capacity of 1.17 cubic meters and a width of 1.45 meters.

How much is a Komatsu PC200-5 Crawler excavator (1989u20131996) worth?

The residual value of the Komatsu PC200-5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
