PC138US-11E0 Komatsu excavator specs & Dimensions (2022 - 2026)

Komatsu PC138US-11E0 is a crawler excavator manufactured since 2022. It has a weight of 14.08 tons and a track width of 500 mm. Th…

Komatsu PC138US-11E0 is a crawler excavator manufactured since 2022. It has a weight of 14.08 tons and a track width of 500 mm. The transport dimensions are 7.26 meters in length, 2.49 meters in width, and 3.15 meters in height. The machine features a tear-out force of 93.2 kN, a dredging depth of 5.48 meters, and a maximum horizontal reach of 8.3 meters. The bucket width is 1.07 meters with a capacity of 0.76 cubic meters. Special equipment includes air conditioning, a blade, and an overload alert system.

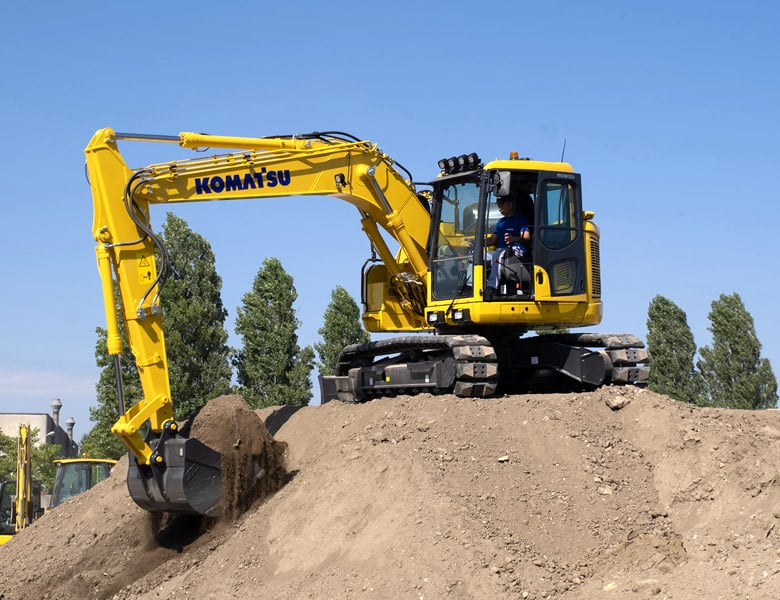

Crawler Excavators Komatsu PC138US-11E0
Crawler Excavators Komatsu PC138US-11E0
Crawler Excavators Komatsu PC138US-11E0
Crawler Excavators Komatsu PC138US-11E0
Crawler Excavators Komatsu PC138US-11E0
Crawler Excavators Komatsu PC138US-11E0
Crawler Excavators Komatsu PC138US-11E0
Crawler Excavators Komatsu PC138US-11E0

Visit Komatsu live at

Technical specs - PC138US-11E0 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.08 t
Transport length
7.26 m
Transport width
2.49 m
Transport height
3.15 m
Bucket capacity
0.76 m³
Undercarriage
LC
Track width
500 mm
Boom
MB
Max. Reach horizontal
8.3 m
Dredging depth
5.48 m
Tear-out force
93.2 kN
Bucket width
1.07 m
Model series
PC
Engine manuf.
Komatsu
Engine type
SAA4D95LE-7
Engine power
72.6 kW
Displacement
3.26 l
Revolutions at max torque
2050 rpm
No. of cylinders
4
Cylinder bore x stroke
95x115 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC138US-11E0 FAQ

When was the Komatsu PC138US-11E0 manufactured?

The Komatsu PC138US-11E0 was first produced in 2022.

How much does the Komatsu PC138US-11E0 weigh?

The Komatsu PC138US-11E0 weighs 14.08 tons.

What are the transport dimensions of the Komatsu PC138US-11E0?

The Komatsu PC138US-11E0 has a transport length of 7.26 meters, a transport width of 2.49 meters, and a transport height of 3.15 meters.

What are the undercarriage specifications of the Komatsu PC138US-11E0?

The Komatsu PC138US-11E0 has a long undercarriage and a track width of 500 mm.

What are the excavation performance specifications of the Komatsu PC138US-11E0?

The Komatsu PC138US-11E0 has a dredging depth of 5.48 meters, a maximum horizontal reach of 8.3 meters, and features a monobloc boom.

What is the power rating of the Komatsu PC138US-11E0?

Power rating data is not available for the Komatsu PC138US-11E0.

What are the bucket specifications of the Komatsu PC138US-11E0 excavator?

The Komatsu PC138US-11E0 excavator has a bucket capacity of 0.76 cubic meters and a bucket width of 1.07 meters.

How much is a Komatsu PC138US-11E0 Crawler excavator (2022u20132025) worth?

The residual value of the Komatsu PC138US-11E0 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
