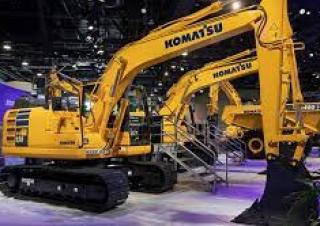

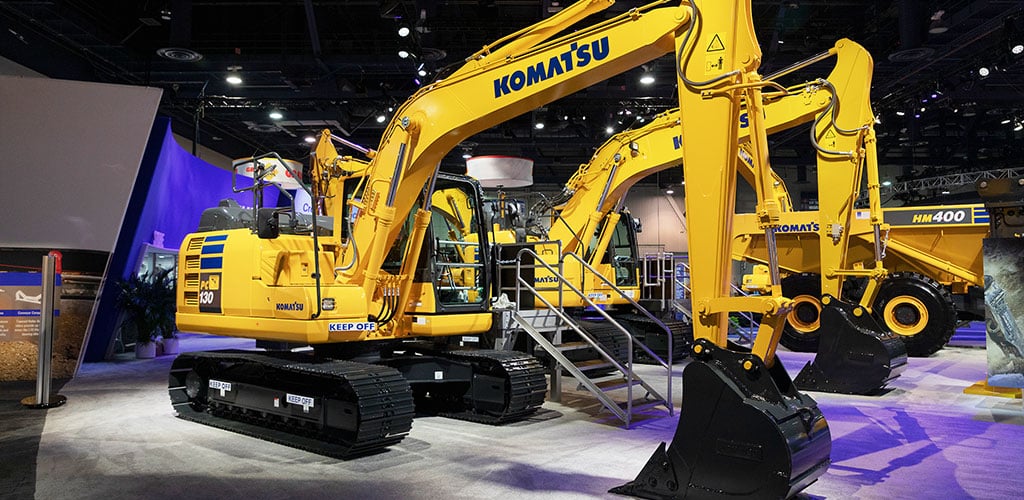

PC130-11 Komatsu excavator specs & Dimensions (2021 - 2026)

High Performance in a Light Weight Package

A powerful engine and heavy duty work equipment provide exceptional performance in an easy to transport package. A conventional cab provides a quiet, comfortable, and spacious work environment.

Variable Flow Turbocharger

A variable flow turbocharger features simple and reliable technology that varies the intake air-flow. The exhaust turbine speed is controlled by a flow control valve that optimizes air volume to the engine combustion chamber under all engine speed and load conditions. The result is cleaner exhaust gas while maintaining power and performance.

Heavy-Duty Cooled Exhaust Gas Recirculation (EGR) System

The system recirculates a portion of exhaust gas into air intake and lowers combustion temperatures to reduce NOx emissions. Furthermore, while EGR gas flow is increased, by incorporating a high-efficiency and compactly designed cooling system, the system achieves a dynamic reduction of NOx, while helping reduce fuel consumption.

High Pressure Common Rail (HPCR) Fuel Injection System

High pressure fuel injection with computerized control attains close to complete combustion reducing Particulate Matter (PM) emissions. While this technology is already used in current engines, the new system uses a higher-pressure injection, thereby reducing both PM emissions and fuel consumption at all engine load conditions.

Komatsu Auto Idle Shutdown

Komatsu auto idle shutdown automatically shuts the engine down after idling for a set period of time to reduce unnecessary fuel consumption and exhaust emissions. The countdown to engine shutdown can be easily programmed from 5 to 60 minutes.

Efficient hydraulic system

The PC130-11 uses a Closed-center Load Sensing System (CLSS) that improves fuel efficiency and provides quick response to the operator's demands. The control system matches engine and hydraulic demand at the most efficient point under any load condition. There have also been improvements in the main valve and hydraulic circuit to reduce hydraulic loss, resulting in higher efficiency and lower fuel consumption.

Working Mode Selection

The PC130-11 excavator is equipped with six working modes (P, E, L, B, ATT/P and ATT/E). Each mode is designed to match engine speed, pump flow, and system pressure to the application. The PC130-11 features an attachment mode (ATT/E) that allows operators to run attachments while in Economy mode.

Standard high-efficiency fuel filter

A high-efficiency fuel filter and a fuel pre-filter with water separator increase reliability. The fuel pre-filter is equipped with a priming pump.

Easy access to engine oil filter

The engine oil filter, engine main fuel filter and fuel drain valve are remote mounted to improve accessibility.

Attachment circuit filter

An easy access filter protects the hydraulic system from attachment contaminants (included with factory + 1 attachment piping).

DEF tank and pump

Designed for ground level access, the DEF tank includes a sight glass gauge and the DEF pump and filter are conveniently located next to the DEF tank.

Easy-to-clean cab floor mat

The PC130-11’s surface grooves run parallel to the operator and has a flanged edge combined with drainage holes to allow water run off when cleaning the cab.

Automatic Air Conditioner

The automatic air conditioner allows the operator to easily and precisely set the cab atmosphere using the large LCD color monitor panel. The bi-level control function improves air flow and keeps the inside of the cab comfortable throughout the year.

Auxiliary Input Jack

Connecting an auxiliary device such as an MP3 player to the auxiliary input enables the operator to hear the sound throughout the stereo speakers installed in the cab.

KomVision (Optional)

An optional three camera system provides a bird’s eye view (including cab visibility) of the machine and surrounding area. A second display with selectable individual camera views of the left, rear, and right side is easily changed using the F4 button. This system improves operation and situational awareness on the jobsite.

Side-by-Side Cooling

The radiator and oil cooler are side-by-side modules which simplifies cleaning, removal, and installation. The addition of screens helps keep the cooler cores clean and free of debris.

Aftertreatment Device Automatic Regeneration Display

When performing automatic regeneration to clean any area deposits in the exhaust system, the monitor will display an action icon to the operator. There is no interruption to the operation of the machine during this cycle.
