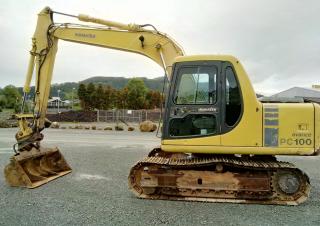

PC100-6 Komatsu excavator specs & Dimensions (2000 - 2007)

Komatsu PC100-6 is a Crawler Excavator manufactured from 2000 to 2007. It has a weight of 11.1 tons and a track width of 700 mm. T…

Komatsu PC100-6 is a Crawler Excavator manufactured from 2000 to 2007. It has a weight of 11.1 tons and a track width of 700 mm. The transport dimensions are 7.085 meters in length, 2.49 meters in width, and 3.08 meters in height. The dredging depth is 5.56 meters, and the maximum horizontal reach is 8.025 meters. The bucket width is 1.067 meters, with a bucket capacity of 0.57 cubic meters.

Crawler Excavators Komatsu PC100-6

Visit Komatsu live at

Technical specs - PC100-6 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
11.1 t
Transport length
7.085 m
Transport width
2.49 m
Transport height
3.08 m
Bucket capacity
0.57 m³
Undercarriage
SL
Track width
700 mm
Boom
MB
Max. Reach horizontal
8.025 m
Dredging depth
5.56 m
Bucket width
1.067 m
Model series
PC
Engine manuf.
Komatsu
Engine type
S4D102E
Engine power
60 kW
Displacement
3.92 l
Revolutions at max torque
2100 rpm
No. of cylinders
4
Cylinder bore x stroke
102x120 mm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC100-6 FAQ

When was the Komatsu PC100-6 manufactured?

The Komatsu PC100-6 was manufactured from 2000 to 2007.

How much does the Komatsu PC100-6 weigh?

The Komatsu PC100-6 weighs 11.1 tons.

What are the transport dimensions of the Komatsu PC100-6?

The Komatsu PC100-6 has a transport length of 7.09 meters, a transport width of 2.49 meters, and a transport height of 3.08 meters.

What are the undercarriage specifications of the Komatsu PC100-6?

The Komatsu PC100-6 has a standard undercarriage with a track width of 700 mm.

What are the excavation performance specifications of the Komatsu PC100-6?

The Komatsu PC100-6 has a dredging depth of 5.56 meters, a maximum horizontal reach of 8.025 meters, and is equipped with a monobloc boom.

What are the bucket specifications of the Komatsu PC100-6 excavator?

The Komatsu PC100-6 excavator has a bucket capacity of 0.57 cubic meters and a bucket width of 1.067 meters.

How much is a Komatsu PC100-6 Crawler excavator (2000u20132007) worth?

The residual value of the Komatsu PC100-6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
