6633 Koehring excavator specs & Dimensions (1985 - 1987)

Koehring 6633 is a crawler excavator manufactured from 1985 to 1987. It has a weight of 33.143 tons and a track width of 800 mm. T…

Koehring 6633 is a crawler excavator manufactured from 1985 to 1987. It has a weight of 33.143 tons and a track width of 800 mm. The transport dimensions are 11 meters in length, 3 meters in width, and 3 meters in height. The bucket width is 1.524 meters with a maximum bucket capacity of 1 cubic meter. Special equipment includes air conditioning, a diesel particulate filter, and an overload alert system.

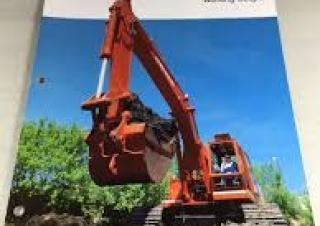

Crawler Excavators Koehring 6633

Technical specs - 6633 Koehring

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
33.14 t
Transport length
11 m
Transport width
3 m
Transport height
3 m
Bucket capacity max.
1 m³
Undercarriage
LC
Track width
800 mm
Boom
MB
Max. Reach horizontal
12.21 m
Dredging depth
8.29 m
Tear-out force
154.95 kN
Bucket width
1.524 m
Engine manuf.
Isuzu
Engine type
65A1T
Engine power
138 kW
Displacement
8.391 l
Revolutions at max torque
1400 rpm

More technical details, like: bucket capacity, bucket capacity min., model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Koehring 6633 FAQ

When was the Koehring 6633 manufactured?

The Koehring 6633 was manufactured from 1985 to 1987.

How much does the Koehring 6633 weigh?

The Koehring 6633 weighs 33.14 tons.

What are the transport dimensions of the Koehring 6633 crawler excavator?

The Koehring 6633 has a transport length of 11 meters, a transport width of 3 meters, and a transport height of 3 meters.

What are the undercarriage specifications of the Koehring 6633 crawler excavator?

The Koehring 6633 crawler excavator has a long undercarriage with a track width of 800 mm.

What are the excavation performance specifications of the Koehring 6633?

The Koehring 6633 has a dredging depth of 8.29 meters, a maximum horizontal reach of 12.21 meters, and features a monobloc boom.

What is the tear-out force of the Koehring 6633?

The Koehring 6633 has a tear-out force of 154.95 kN.

What are the specifications of the primary work tool bucket on the Koehring 6633?

The Koehring 6633 has a bucket with a maximum capacity of 1 cubic meter and a width of 1.524 meters.

How much is a Koehring 6633 Crawler excavator (1985u20131987) worth?

The residual value of the Koehring 6633 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
