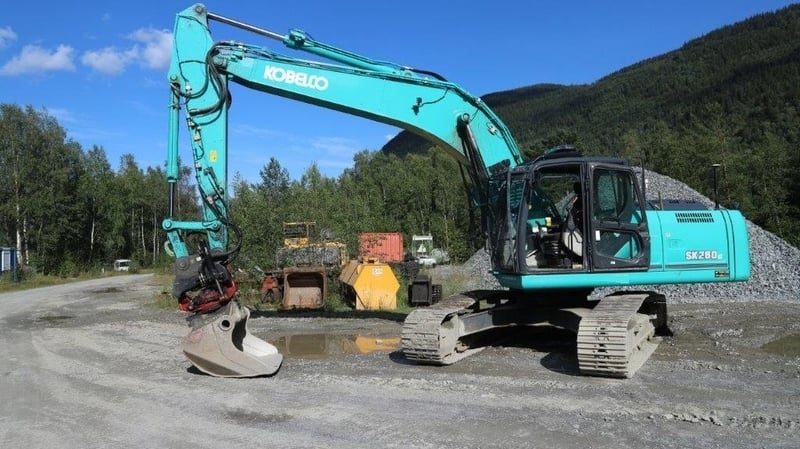

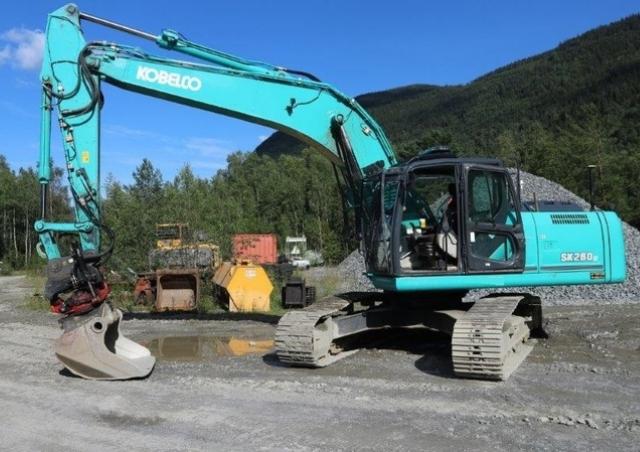

SK 260 LC 9 Kobelco excavator specs & Dimensions (2013 - 2015)

Kobelco SK 260 LC 9 is a Crawler Excavator manufactured from 2013 to 2015, with a weight of 25.5 tons. It features a track width o…

Kobelco SK 260 LC 9 is a Crawler Excavator manufactured from 2013 to 2015, with a weight of 25.5 tons. It features a track width of 600 mm, a transport length of 10.21 meters, a transport width of 3.19 meters, and a transport height of 3.09 meters. The excavator has a tear-out force of 156 kN, a dredging depth of 7.68 meters, and a maximum horizontal reach of 10.98 meters. It is equipped with a bucket width of 1.34 meters and a bucket capacity of 1.2 cubic meters. Special equipment includes air conditioning and a diesel particulate filter.

Crawler Excavators Kobelco SK 260 LC 9

Visit Kobelco live at

Technical specs - SK 260 LC 9 Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
25.5 t
Transport length
10.21 m
Transport width
3.19 m
Transport height
3.09 m
Bucket capacity
1.2 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.98 m
Dredging depth
7.68 m
Tear-out force
156 kN
Bucket width
1.34 m
Engine manuf.
Hino
Engine type
J 05 E-TJ
Engine power
124 kW
Displacement
5.123 l
Revolutions at max torque
1600 rpm
Emission level
Tier 4 interim

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Kobelco SK 260 LC 9 FAQ

When was the Kobelco SK 260 LC 9 manufactured?

The Kobelco SK 260 LC 9 was manufactured from 2013 to 2015.

How much does the Kobelco SK 260 LC 9 weigh?

The Kobelco SK 260 LC 9 weighs 25.5 tons.

What are the transport dimensions of the Kobelco SK 260 LC 9?

The Kobelco SK 260 LC 9 has a transport length of 10.21 meters, a transport width of 3.19 meters, and a transport height of 3.09 meters.

What are the undercarriage specifications of the Kobelco SK 260 LC 9?

The Kobelco SK 260 LC 9 has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the Kobelco SK 260 LC 9?

The Kobelco SK 260 LC 9 has a dredging depth of 7.68 meters, a maximum horizontal reach of 10.98 meters, and features a monobloc boom.

What is the power rating of the Kobelco SK 260 LC 9?

Power rating data is not available for the Kobelco SK 260 LC 9.

What are the bucket specifications of the Kobelco SK 260 LC 9 crawler excavator?

The Kobelco SK 260 LC 9 has a bucket capacity of 1.2 cubic meters and a bucket width of 1.34 meters.

How much is a Kobelco SK 260 LC 9 Crawler excavator (2013u20132015) worth?

The residual value of the Kobelco SK 260 LC 9 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
