SK 235 SRLC 2 Kobelco excavator specs & Dimensions (2022 - 2026)

Kobelco SK 235 SRLC 2 is a crawler excavator manufactured since 2022. It has a weight of 24.9 tons and a track width of 800 mm. Th…

Kobelco SK 235 SRLC 2 is a crawler excavator manufactured since 2022. It has a weight of 24.9 tons and a track width of 800 mm. The transport dimensions are 9.04 m in length, 3.19 m in width, and 3.41 m in height. The machine features a tear-out force of 243 kN, a dredging depth of 7.04 m, and a maximum horizontal reach of 10.24 m. The bucket width is 1.33 m, with a capacity ranging from 0.39 m³ to 0.93 m³. Special equipment includes air conditioning and a diesel particulate filter.

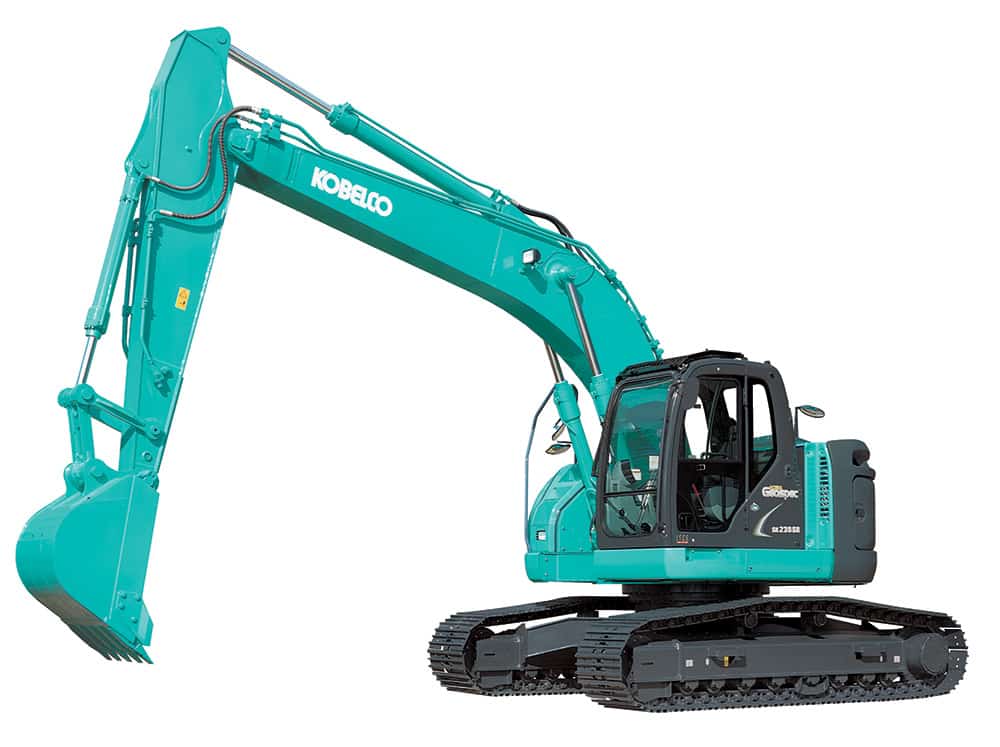

Crawler Excavators Kobelco SK 235 SRLC 2

Visit Kobelco live at

Technical specs - SK 235 SRLC 2 Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.9 t
Transport length
9.04 m
Transport width
3.19 m
Transport height
3.41 m
Bucket capacity min.
0.39 m³
Bucket capacity max.
0.93 m³
Track width
800 mm
Max. Reach horizontal
10.24 m
Dredging depth
7.04 m
Tear-out force
243 kN
Bucket width
1.33 m
Model series
SK
Engine manuf.
Hino
Engine type
J05E
Engine power
118 kW
Displacement
5.12 l
Revolutions at max torque
2000 rpm
Max. torque
592 Nm
No. of cylinders
4
Cylinder bore x stroke
112x130 mm
Emission level
IIIA/US EPA Tier III

More technical details, like: bucket capacity, undercarriage, boom, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kobelco SK 235 SRLC 2 FAQ

When was the Kobelco SK 235 SRLC 2 manufactured?

The Kobelco SK 235 SRLC 2 was first produced in 2022.

How much does the Kobelco SK 235 SRLC 2 weigh?

The Kobelco SK 235 SRLC 2 weighs 24.9 tons.

What are the transport dimensions of the Kobelco SK 235 SRLC 2?

The Kobelco SK 235 SRLC 2 has a transport length of 9.04 meters, a transport width of 3.19 meters, and a transport height of 3.41 meters.

What is the track width of the Kobelco SK 235 SRLC 2's undercarriage?

The Kobelco SK 235 SRLC 2 has a track width of 800 mm.

What are the excavation performance specifications of the Kobelco SK 235 SRLC 2?

The Kobelco SK 235 SRLC 2 has a dredging depth of 7.04 meters and a maximum horizontal reach of 10.24 meters.

What power rating information is available for the Kobelco SK 235 SRLC 2?

There is no power rating information available for the Kobelco SK 235 SRLC 2 in the provided data.

What are the bucket specifications of the Kobelco SK 235 SRLC 2 excavator?

The Kobelco SK 235 SRLC 2 excavator has a bucket with a maximum capacity of 0.93 cubic meters, a minimum capacity of 0.39 cubic meters, and a width of 1.33 meters.

How much is a Kobelco SK 235 SRLC 2 Crawler excavator (2022u20132025) worth?

The residual value of the Kobelco SK 235 SRLC 2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
