SK 235 SR 5 Kobelco excavator specs & Dimensions (2021 - 2026)

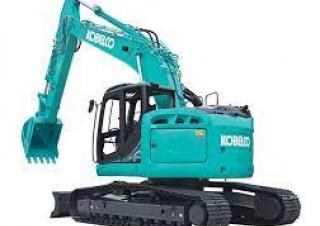

Kobelco SK 235 SR 5 is a Crawler Excavator manufactured since 2021. It has a weight of 24.9 tons and a track width of 600 mm. The …

Kobelco SK 235 SR 5 is a Crawler Excavator manufactured since 2021. It has a weight of 24.9 tons and a track width of 600 mm. The transport dimensions are 8.78 meters in length, 2.99 meters in width, and 3.18 meters in height. The excavator features a tear-out force of 246 kN, a dredging depth of 6.06 meters, and a maximum horizontal reach of 9.9 meters. The bucket capacity ranges from 0.39 m³ to 0.93 m³. Special equipment includes air conditioning, a blade, an overload alert, and track adjustment.

Crawler Excavators Kobelco SK 235 SR 5

Visit Kobelco live at

Technical specs - SK 235 SR 5 Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.9 t
Transport length
8.78 m
Transport width
2.99 m
Transport height
3.18 m
Bucket capacity min.
0.39 m³
Bucket capacity max.
0.93 m³
Track width
600 mm
Max. Reach horizontal
9.9 m
Dredging depth
6.06 m
Tear-out force
246 kN
Model series
SK
Engine manuf.
Hino
Engine type
J05E-UM
Engine power
124 kW
Displacement
5.123 l
Revolutions at max torque
1600 rpm
Max. torque
660 Nm
No. of cylinders
4
Cylinder bore x stroke
112x130 mm
Emission level
V

More technical details, like: bucket capacity, undercarriage, boom, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kobelco SK 235 SR 5 FAQ

When was the Kobelco SK 235 SR 5 manufactured?

The Kobelco SK 235 SR 5 was first produced in 2021.

How much does the Kobelco SK 235 SR 5 weigh?

The Kobelco SK 235 SR 5 weighs 24.9 tons.

What are the transport dimensions of the Kobelco SK 235 SR 5?

The Kobelco SK 235 SR 5 has a transport length of 8.78 meters, a transport width of 2.99 meters, and a transport height of 3.18 meters.

What is the track width of the Kobelco SK 235 SR 5's undercarriage?

The Kobelco SK 235 SR 5 has a track width of 600 mm.

What is the excavation performance of the Kobelco SK 235 SR 5?

The Kobelco SK 235 SR 5 has a dredging depth of 6.06 meters and a maximum horizontal reach of 9.9 meters.

What power rating information is available for the Kobelco SK 235 SR 5?

The source data does not provide power rating information for the Kobelco SK 235 SR 5; it only specifies a tear-out force of 246 kN.

What are the bucket capacity specifications of the Kobelco SK 235 SR 5 excavator?

The Kobelco SK 235 SR 5 excavator has a bucket capacity ranging from 0.39 to 0.93 cubic meters.
