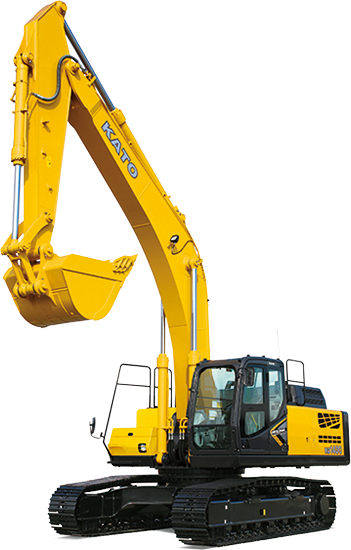

HD1430LC-7 Kato excavator specs & Dimensions (2017 - 2019)

Kato HD1430LC-7 is a crawler excavator manufactured from 2017 to 2019. It has a weight of 32 tons and a track width of 600 mm. The…

Kato HD1430LC-7 is a crawler excavator manufactured from 2017 to 2019. It has a weight of 32 tons and a track width of 600 mm. The transport dimensions are 11 meters in length, 3 meters in width, and 3 meters in height. The excavator features a tear-out force of 224 kN, a dredging depth of 7 meters, and a maximum horizontal reach of 9 meters. It is equipped with a bucket capacity of 1 cubic meter and includes air conditioning as special equipment.

Crawler Excavators Kato HD1430LC-7

Technical specs - HD1430LC-7 Kato

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
32 t
Transport length
11.22 m
Transport width
3.19 m
Transport height
3.48 m
Bucket capacity
1.4 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.86 m
Dredging depth
7.45 m
Tear-out force
224 kN
Model series
HD
Engine manuf.
Daimler
Engine type
OM936 LA
Engine power
205 kW
Displacement
7 l
Revolutions at max torque
1200 rpm
Max. torque
1150 Nm
No. of cylinders
6
Cylinder bore x stroke
110x135 mm
Emission level
Tier 4. EU IV

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kato HD1430LC-7 FAQ

When was the Kato HD1430LC-7 manufactured?

The Kato HD1430LC-7 was manufactured from 2017 to 2019.

How much does the Kato HD1430LC-7 weigh?

The Kato HD1430LC-7 weighs 32 tons.

What are the transport dimensions of the Kato HD1430LC-7 crawler excavator?

The Kato HD1430LC-7 has a transport length of 11.22 meters, a transport width of 3.19 meters, and a transport height of 3.48 meters.

What are the undercarriage specifications of the Kato HD1430LC-7?

The Kato HD1430LC-7 has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Kato HD1430LC-7 crawler excavator?

The Kato HD1430LC-7 has a dredging depth of 7.45 meters, a maximum horizontal reach of 9.86 meters, and is equipped with a monobloc boom.

What are the power ratings of the Kato HD1430LC-7?

No power rating data is available for the Kato HD1430LC-7 in the provided source data.

What is the bucket capacity of the Kato HD1430LC-7?

The Kato HD1430LC-7 has a bucket capacity of 1.4 cubic meters.

How much is a Kato HD1430LC-7 Crawler excavator (2017u20132019) worth?

The residual value of the Kato HD1430LC-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
