NXT 145 JCB excavator specs & Dimensions (2022 - 2026)

JCB NXT 145 is a Crawler Excavator manufactured since 2022. It has a weight of 14.5 tons and a track width of 500 mm. The transpor…

JCB NXT 145 is a Crawler Excavator manufactured since 2022. It has a weight of 14.5 tons and a track width of 500 mm. The transport dimensions are 7.63 meters in length, 2.49 meters in width, and 2.98 meters in height. The excavator features a tear-out force of 92.5 kN, a dredging depth of 5.21 meters, and a maximum horizontal reach of 7.89 meters. The bucket width is 1.16 meters, with a capacity ranging from 0.63 to 0.72 cubic meters.

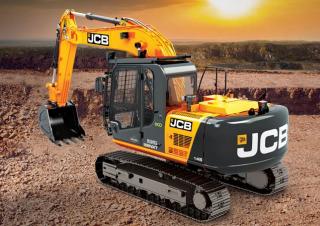

Crawler Excavators JCB NXT 145

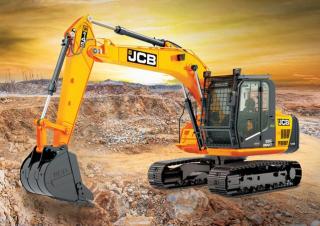

Crawler Excavators JCB NXT 145
Crawler Excavators JCB NXT 145
Crawler Excavators JCB NXT 145

Visit JCB live at

Technical specs - NXT 145 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.5 t
Transport length
7.63 m
Transport width
2.49 m
Transport height
2.98 m
Bucket capacity min.
0.63 m³
Bucket capacity max.
0.72 m³
Track width
500 mm
Boom
MB
Max. Reach horizontal
7.89 m
Dredging depth
5.21 m
Tear-out force
92.5 kN
Bucket width
1.16 m
Model series
NXT
Engine manuf.
Cummins
Engine type
4BT 3.9C
Engine power
75 kW

More technical details, like: bucket capacity, undercarriage, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB NXT 145 FAQ

When was the JCB NXT 145 manufactured?

The JCB NXT 145 was first produced in 2022.

How much does the JCB NXT 145 weigh?

The JCB NXT 145 weighs 14.5 tons.

What are the transport dimensions of the JCB NXT 145 crawler excavator?

The JCB NXT 145 has a transport length of 7.63 meters, a transport width of 2.49 meters, and a transport height of 2.98 meters.

What is the track width of the JCB NXT 145's undercarriage?

The JCB NXT 145 has a track width of 500 mm.

What are the excavation performance specifications of the JCB NXT 145?

The JCB NXT 145 has a dredging depth of 5.21 meters, a maximum horizontal reach of 7.89 meters, and is equipped with a monobloc boom.

What is the tear-out force of the JCB NXT 145?

The JCB NXT 145 has a tear-out force of 92.5 kN. No power rating data is available for this model in the provided information.

What are the specifications of the primary work tool bucket on the JCB NXT 145?

The JCB NXT 145's primary work tool bucket has a maximum capacity of 0.72 cubic meters, a minimum capacity of 0.63 cubic meters, and a width of 1.16 meters.

How much is a JCB NXT 145 Crawler excavator (2022u20132025) worth?

The residual value of the JCB NXT 145 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

JCB NXT 145 overview

Engine

NXT Level of Efficiency

The class-leading efficiency with energy saving ecoHYDRAULICS offering NXT level of savings. ecoHYDRAULICS minimise the hydraulic losses resulting in enhanced fuel efficiency, thus increasing savings. The one-touch deceleration system helps to reduce engine rpm by just giving one touch to the switch. Additionally, the auto idler reduces engine speed automatically when the machine is not at work, thus saving fuel.


Upper Structure

Performance

Excellent bucket and arm tear-out forces result in higher output. With a swing speed of 13.6 rpm, digging is completed in less time, which increases the productivity of the machine.


Cab

NXT Level of Easy Maintenance and Safety

The JCB NXT 145 Quarry Master ensures ease of maintenance and alerts on display. Advanced self-diagnosis system with error codes and multi-coloured warning alerts for easy and quick maintenance. Display of all critical parameters accessed through internal menu for easy health monitoring.


NXT Level of Comfort

A comfortable operator is a productive operator. 6 nos. viscous mounts to absorb vibration that ensures comfort for the operator. Easy to open roof hatch assisted helps to keep the cab well ventilated.
