JZ 255 LC JCB excavator specs & Dimensions (2010 - 2014)

JCB JZ 255 LC is a crawler excavator manufactured from 2010 to 2014, with a weight of 23.33 tons. It features a track width of 700…

JCB JZ 255 LC is a crawler excavator manufactured from 2010 to 2014, with a weight of 23.33 tons. It features a track width of 700 mm, a transport length of 8.95 meters, a transport width of 3.29 meters, and a transport height of 3.06 meters. The bucket capacity is 1.025 cubic meters.

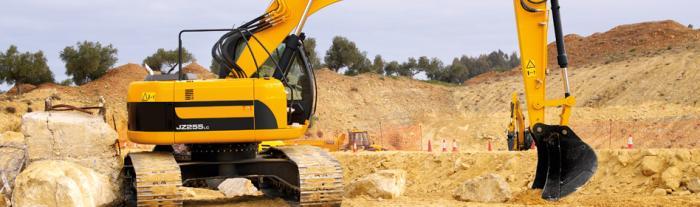

Crawler Excavators JCB JZ 255 LC

Visit JCB live at

Technical specs - JZ 255 LC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.33 t
Transport length
8.95 m
Transport width
3.29 m
Transport height
3.06 m
Bucket capacity
1.025 m³
Undercarriage
LC
Track width
700 mm
Boom
MB
Max. Reach horizontal
9.88 m
Dredging depth
6.63 m
Bucket width
1.2 m
Model series
JZ
Engine manuf.
Isuzu
Engine type
4 HKI
Engine power
128 kW
Displacement
5.193 l
Revolutions at max torque
2000 rpm
Emission level
III

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JZ 255 LC FAQ

When was the JCB JZ 255 LC manufactured?

The JCB JZ 255 LC was manufactured from 2010 to 2014.

How much does the JCB JZ 255 LC weigh?

The JCB JZ 255 LC weighs 23.33 tons.

What are the transport dimensions of the JCB JZ 255 LC?

The JCB JZ 255 LC has a transport length of 8.95 meters, a transport width of 3.29 meters, and a transport height of 3.06 meters.

What are the undercarriage specifications of the JCB JZ 255 LC?

The JCB JZ 255 LC has a long undercarriage with a track width of 700 mm.

What are the excavation performance specifications of the JCB JZ 255 LC?

The JCB JZ 255 LC has a dredging depth of 6.63 meters, a maximum horizontal reach of 9.88 meters, and features a monobloc boom.

What are the specifications of the primary work tool bucket on the JCB JZ 255 LC?

The primary work tool bucket of the JCB JZ 255 LC has a capacity of 1.025 cubic meters and a width of 1.2 meters.

How much is a JCB JZ 255 LC Crawler excavator (2010u20132014) worth?

The residual value of the JCB JZ 255 LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
