JS300 LC JCB excavator specs & Dimensions (2015 - 2017)

Model rating
10,00 / 10

JCB JS300 LC is a crawler excavator manufactured from 2015 to 2017, with a weight of 31.14 tons. It features a track width of 600 …

JCB JS300 LC is a crawler excavator manufactured from 2015 to 2017, with a weight of 31.14 tons. It features a track width of 600 mm, a transport length of 10.65 meters, a transport width of 3.2 meters, and a transport height of 3.35 meters. The machine has a tear-out force of 148 kN and a dredging depth of 7 meters.

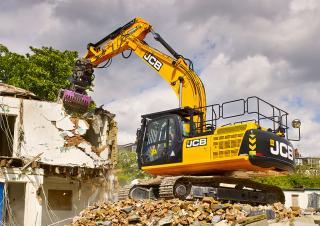

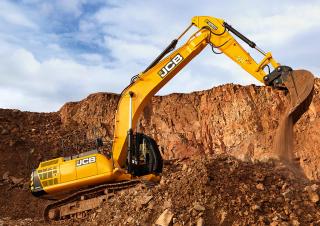

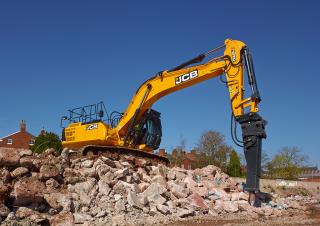

Crawler Excavators JCB JS300 LC
Crawler Excavators JCB JS300 LC
Crawler Excavators JCB JS300 LC
Crawler Excavators JCB JS300 LC
Crawler Excavators JCB JS300 LC
Crawler Excavators JCB JS300 LC

Visit JCB live at

Technical specs - JS300 LC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
31.14 t
Transport length
10.65 m
Transport width
3.2 m
Transport height
3.35 m
Bucket capacity
1.61 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.6 m
Dredging depth
7 m
Tear-out force
148 kN
Bucket width
1.6 m
Model series
JS
Engine manuf.
Isuzu
Engine type
6 HKIX
Engine power
165 kW
Displacement
7.8 l
Emission level
4i/3b

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS300 LC FAQ

When was the JCB JS300 LC manufactured?

The JCB JS300 LC was manufactured from 2015 to 2017.

How much does the JCB JS300 LC weigh?

The JCB JS300 LC weighs 31.14 tons.

What are the transport dimensions of the JCB JS300 LC crawler excavator?

The JCB JS300 LC crawler excavator has a transport length of 10.65 meters, a transport width of 3.2 meters, and a transport height of 3.35 meters.

What are the undercarriage specifications of the JCB JS300 LC?

The JCB JS300 LC has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the JCB JS300 LC?

The JCB JS300 LC has a dredging depth of 7 meters, a maximum horizontal reach of 10.6 meters, and is equipped with a monobloc boom.

What is the tear-out force of the JCB JS300 LC?

The JCB JS300 LC has a tear-out force of 148 kN.

What are the specifications of the primary work tool on the JCB JS300 LC?

The primary work tool of the JCB JS300 LC has a bucket capacity of 1.61 cubic meters and a bucket width of 1.6 meters.

How much is a JCB JS300 LC Crawler excavator (2015u20132017) worth?

The residual value of the JCB JS300 LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
